Samsung Galaxy Ace Plus

Back to section Messaging & email

Set up your phone for picture messaging

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

  • 1

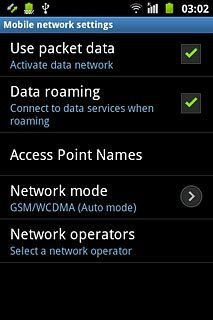

    Find "Access Point Names"
    • Press the menu icon.
    • Press Settings.
    • Press Wireless and network.
    • Press Mobile networks.
    • Press Access Point Names.
  • 2

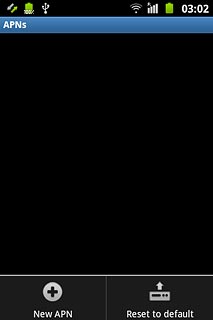

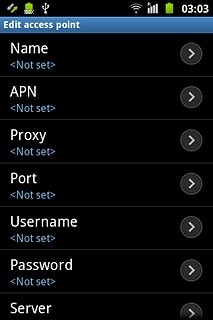

    Create new data connection
    • Press the Menu key.
    • Press New APN.
  • 3

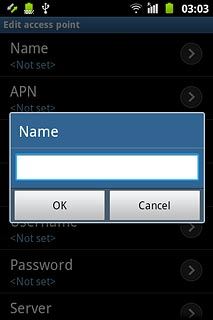

    Enter data connection name
    • Press Name.
    • Key in Telstra MMS and press OK.
  • 4
    Enter APN

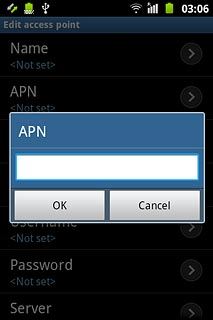

    • Press APN.
    • Key in telstra.mms and press OK.
  • 5
    Enter picture messaging server

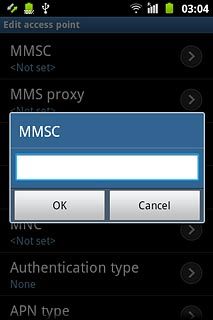

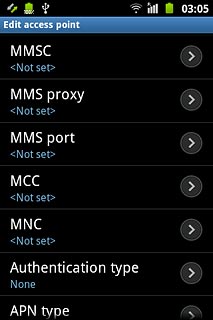

    • Press MMSC.
    • Key in http://mmsc.telstra.com:8002 and press OK.
  • 6

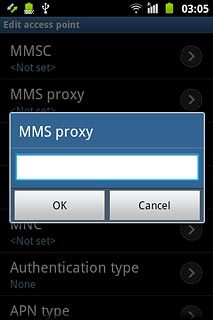

    Enter IP address
    • Press MMS proxy.
    • Key in 10.1.1.180 and press OK.
  • 7
    Enter port number

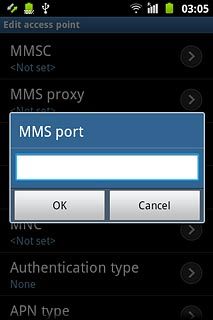

    • Press MMS port.
    • Key in 80 and press OK.
  • 8
    Enter country code

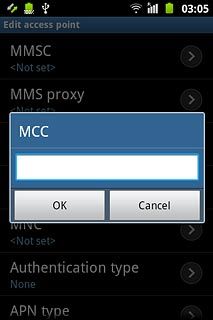

    • Press MCC.
    • Key in 505 and press OK.
  • 9
    Enter network code
    • Press MNC.
    • Key in 01 and press OK.
  • 10

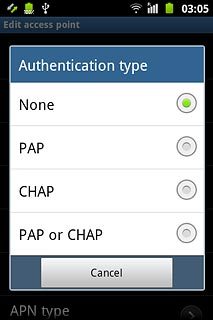

    Select authentication type

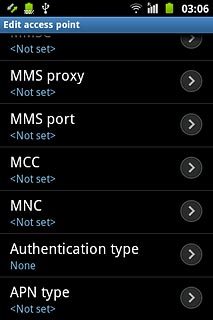

    • Press Authentication type.
    • Press None.
  • 11
    Select APN type

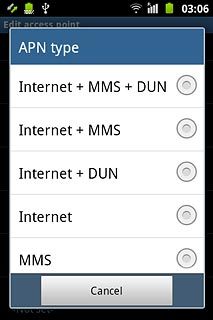

    • Press APN type.
    • Press MMS.
  • 12
    Save data connection

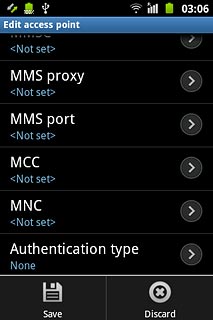

    • Press the Menu key.
    • Press Save.
  • 13
    Return to the home screen
    • Press the Home key to return to the home screen.
