Set up your phone for Exchange email

You can set up your phone to send and receive email from your Exchange email account. To set up your phone for Exchange email, you need to set up your phone for internet.
Select an alternative email configuration:
- Set up your phone for Telstra Mail
- Set up your phone for POP3 email

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Accounts.
Press Add account.
Press Microsoft Exchange ActiveSync.
Press Email address and key in your email address.
Press Password and key in the password for your email account.
Press SIGN IN.
Press the field below
Press the field below
Press Use secure connection (SSL) to turn the function on or off.
Press Use client certificate to turn the function on or off.
If you turn on the function, press CLIENT CERTIFICATE and follow the instructions on the screen to install the required certificate.
Press SIGN IN.
Press Microsoft Exchange ActiveSync.
Press the indicator next to
Press the indicator next to
Press the indicator next to
Press the indicator next to
Press the Home key to return to the home screen.
Press Apps.
Press Samsung.
Press Email.
Press MORE.
Press Settings.
Press the required Exchange account.
Press Sync account to turn on the function.
Press Account name and key in the required name.
Press OK.
Press Sync schedule.
Press Set sync schedule.
Press the required setting.
Press the required data types to turn synchronisation on or off.
Press the Home key to return to the home screen.
  • 1
    Find "Accounts"
    • Slide your finger downwards starting from the top of the screen.
    • Press the settings icon.
    • Press Accounts.
  • 2
    Create new email account
    • Press Add account.
    • Press Microsoft Exchange ActiveSync.
  • 3
    Enter email address

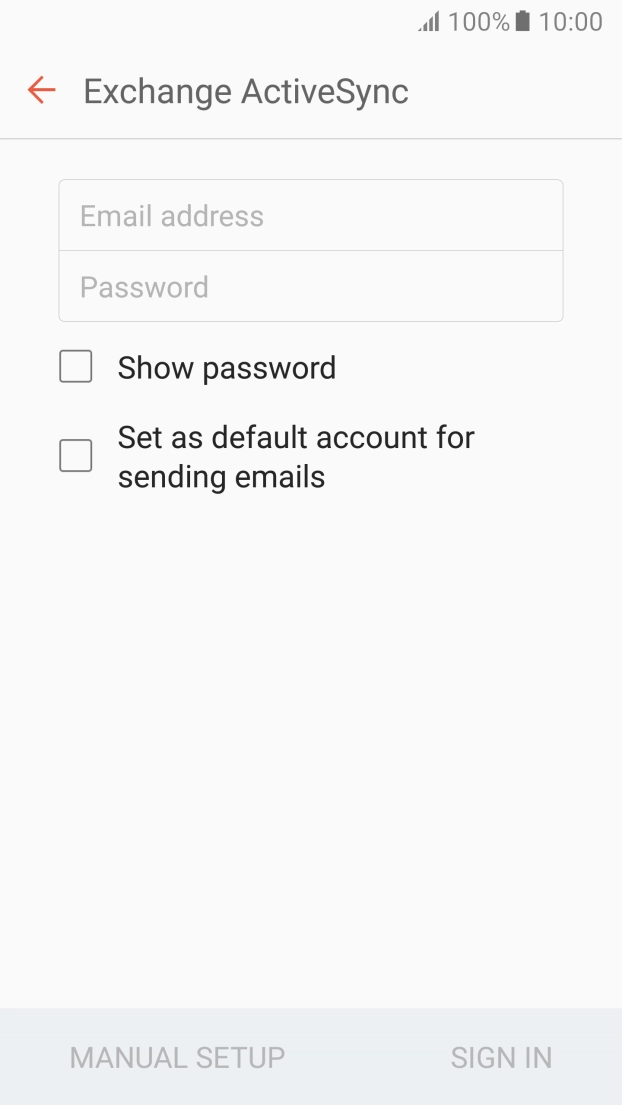

    • Press Email address and key in your email address.
  • 4
    Enter password

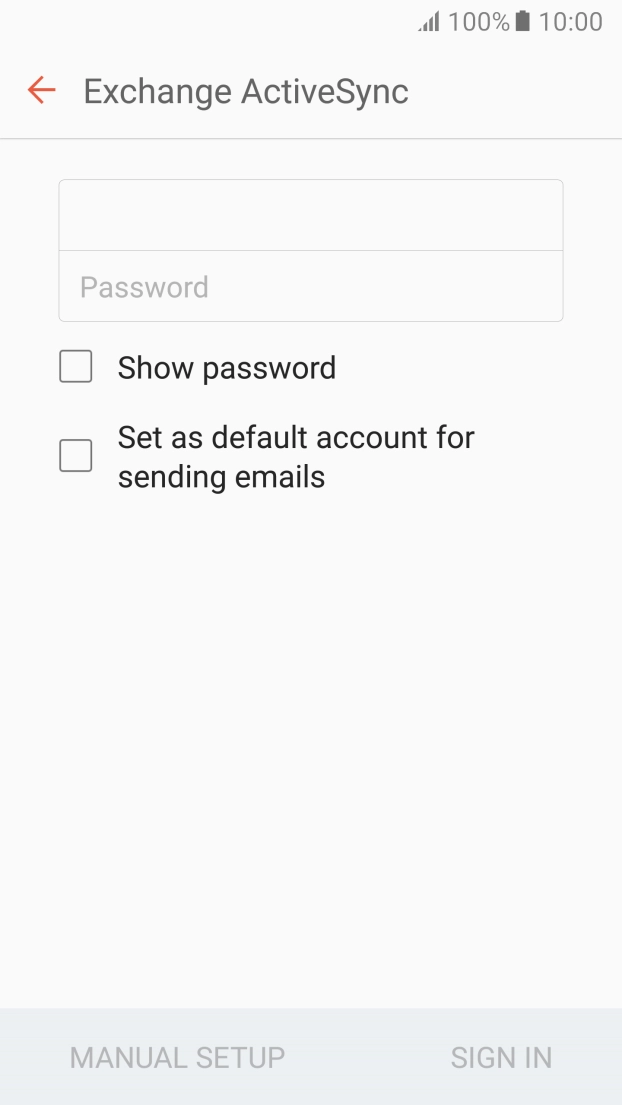

    • Press Password and key in the password for your email account.

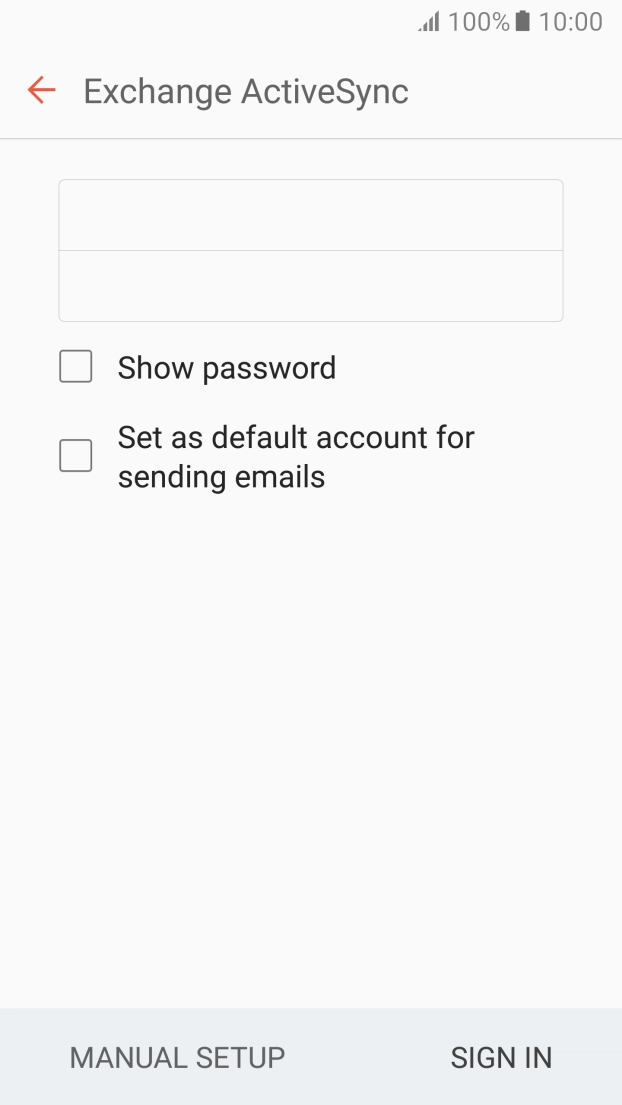

    • Press SIGN IN.
      If the screen tells you that the email account has been set up, follow the instructions on the screen to select more settings and finish the setup.
  • 5
    Enter domain and username

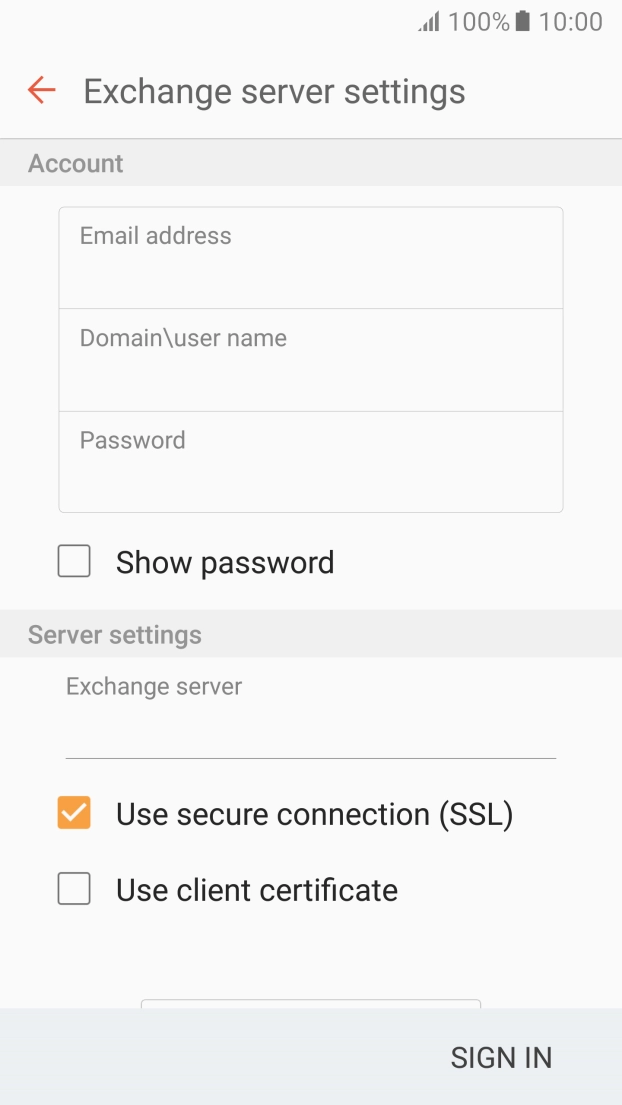

    • Press the field below "Domain\user name" and key in the domain and username separated by a "\".
  • 6
    Enter server address
    • Press the field below "Exchange server" and key in the server address.
  • 7
    Turn SSL encryption on or off

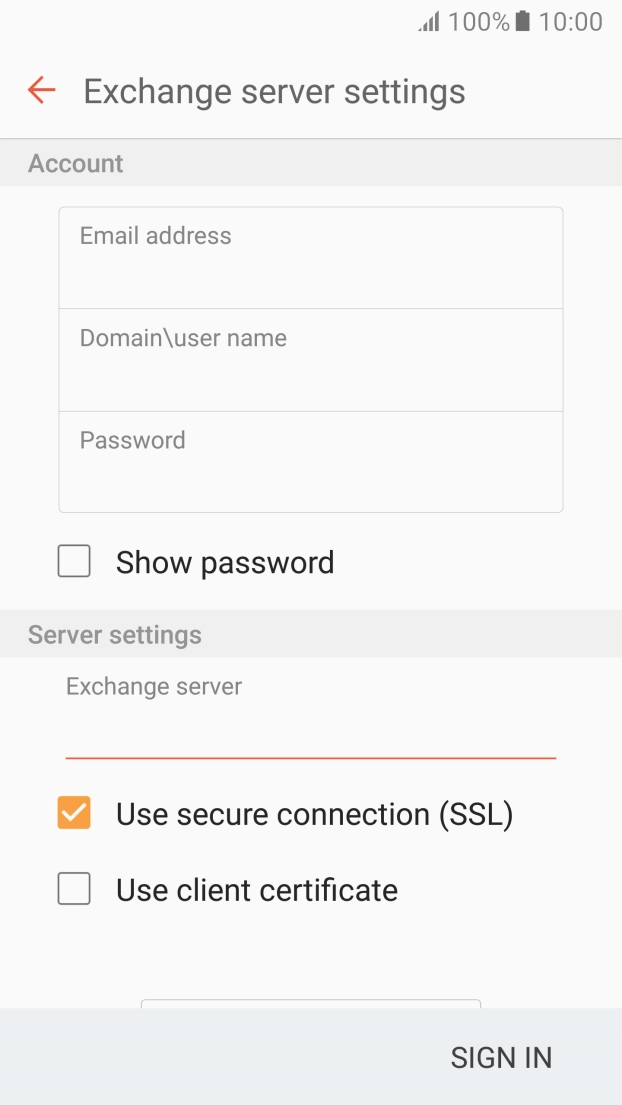

    • Press Use secure connection (SSL) to turn the function on or off.
    • Press Use client certificate to turn the function on or off.

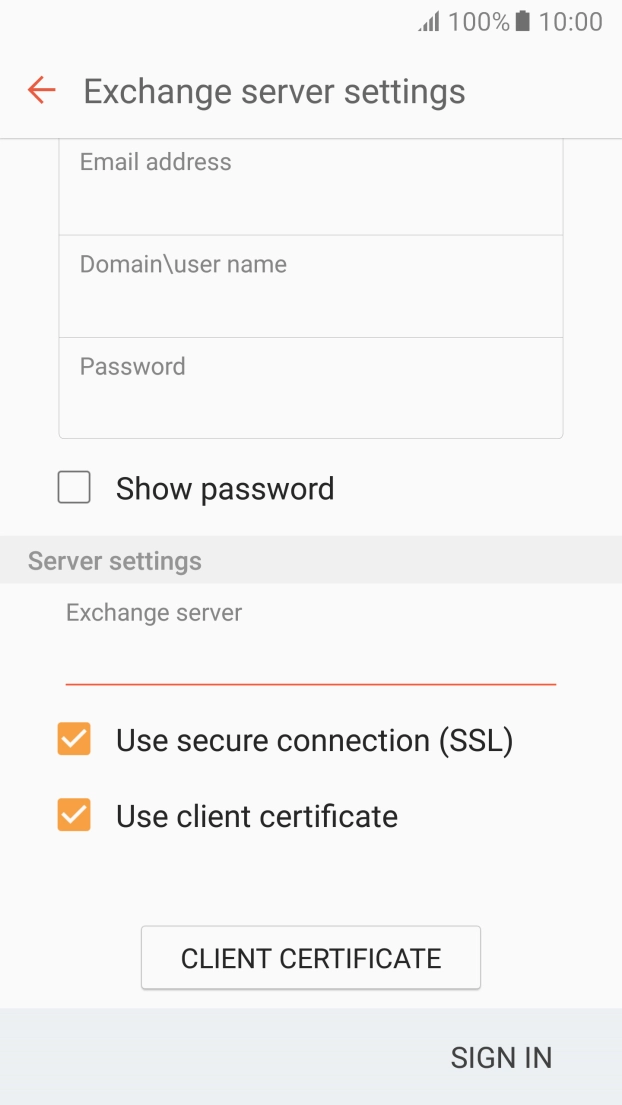

    • If you turn on the function, press CLIENT CERTIFICATE and follow the instructions on the screen to install the required certificate.
    • Press SIGN IN.
  • 8
    Turn synchronisation on or off

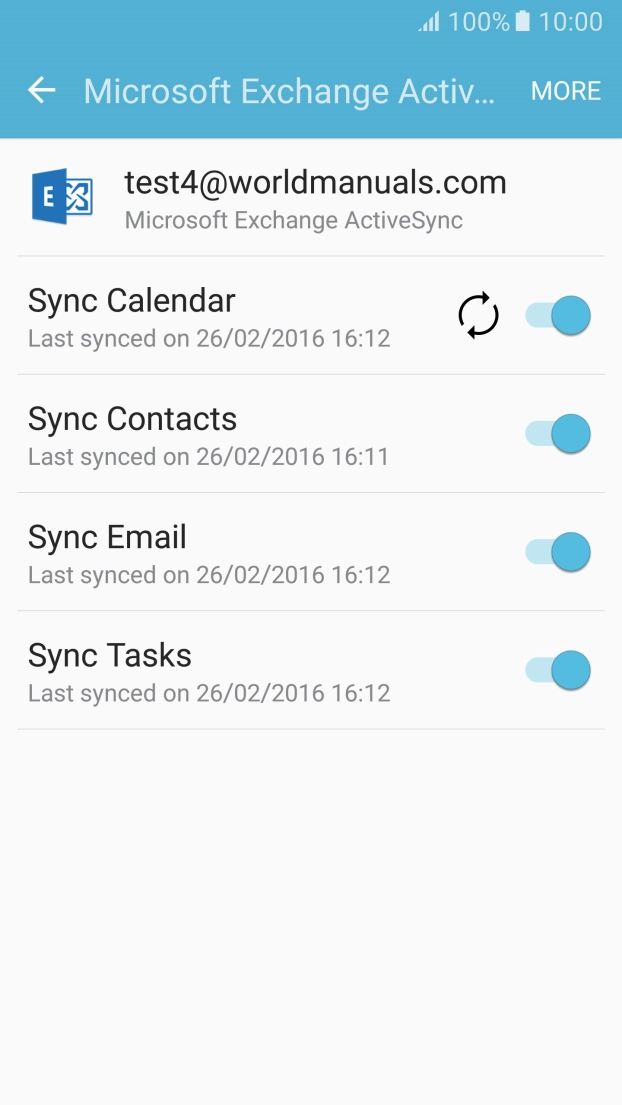

    • Press Microsoft Exchange ActiveSync.
  • 9
    Turn calendar synchronisation on or off
    • Press the indicator next to "Sync Calender" to turn the function on or off.
  • 10
    Turn contact synchronisation on or off
    • Press the indicator next to "Sync Contacts" to turn the function on or off.
  • 11
    Turn email synchronisation on or off
    • Press the indicator next to "Sync Email" to turn the function on or off.
  • 12
    Turn task synchronisation on or off
    • Press the indicator next to "Sync Tasks" to turn the function on or off.
  • 13
    Return to the home screen
    • Press the Home key to return to the home screen.
  • 14
    Find "Email"
    • Press Apps.
    • Press Samsung.
    • Press Email.
  • 15
    Turn on email synchronisation
    • Press MORE.
    • Press Settings.
    • Press the required Exchange account.

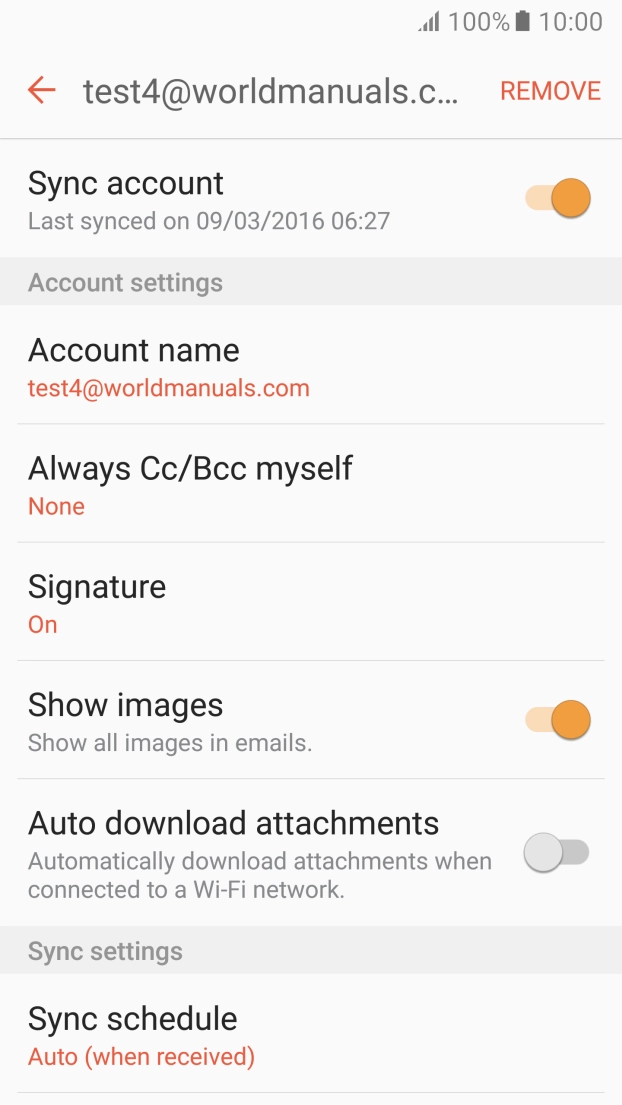

    • Press Sync account to turn on the function.
  • 16
    Enter email account name

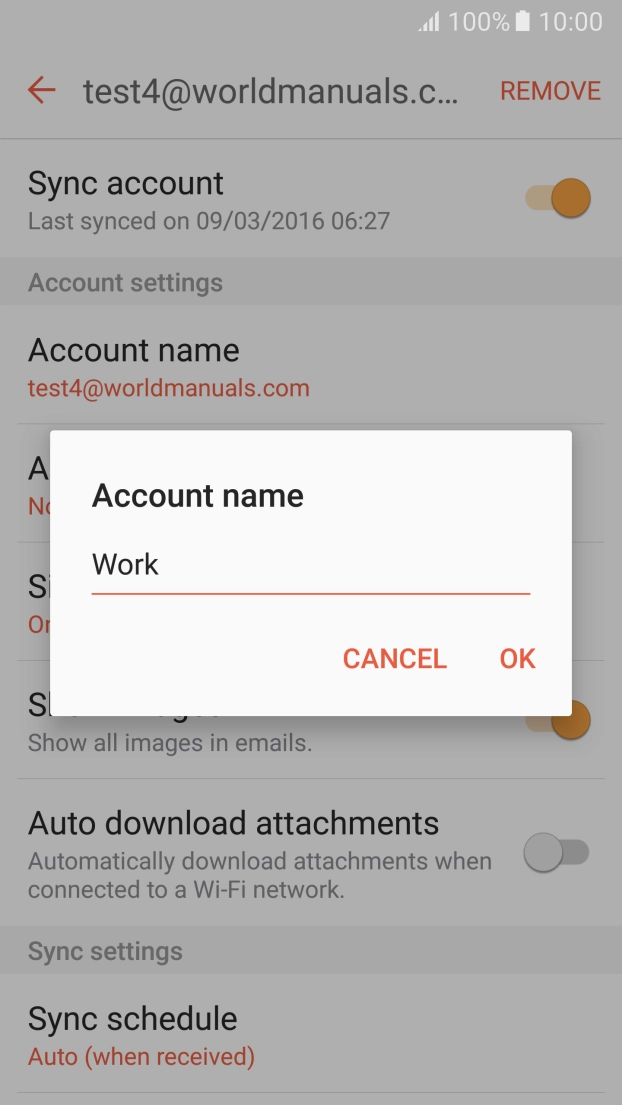

    • Press Account name and key in the required name.
    • Press OK.
  • 17
    Select settings for retrieval of new email

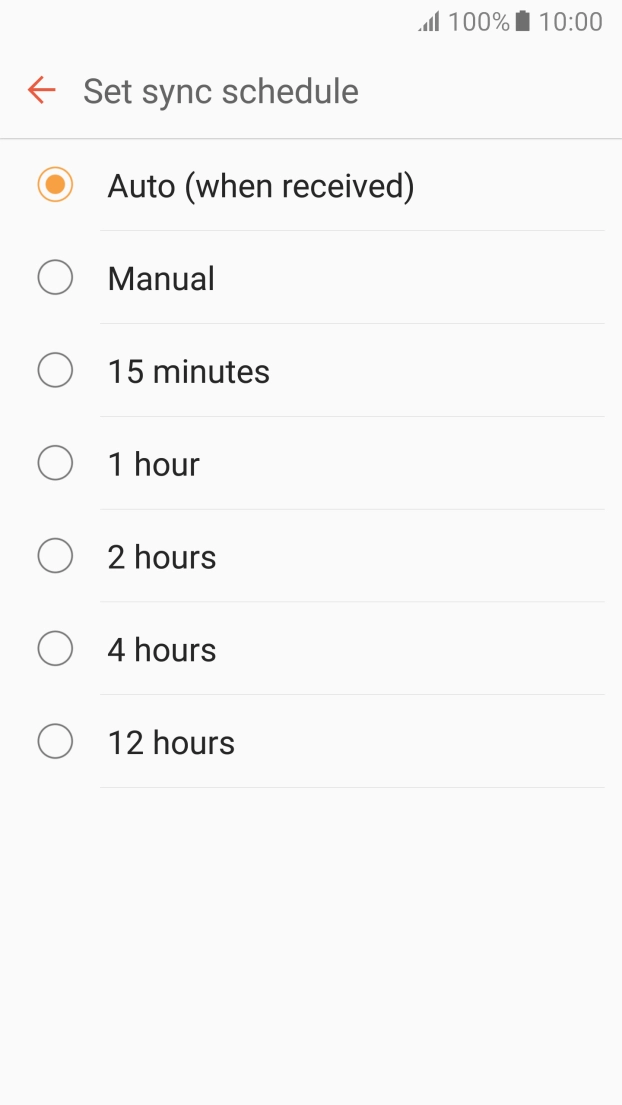

    • Press Sync schedule.
    • Press Set sync schedule.
    • Press the required setting.
  • 18
    Select settings for synchronisation of data

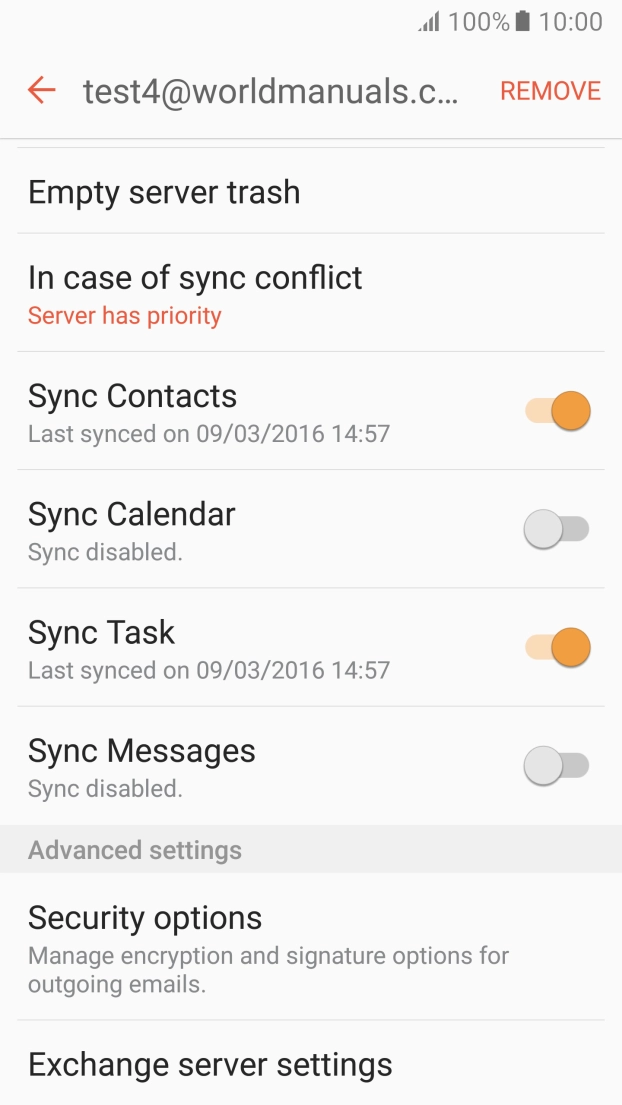

    • Press the required data types to turn synchronisation on or off.
  • 19
    Return to the home screen
    • Press the Home key to return to the home screen.
