Apple iPhone 7

Back to section Messaging & email

Set up your phone for IMAP email

You can set up your phone to send and receive email from your email accounts. Using IMAP, your email are kept on the server and are synchronised between all of your devices. It is therefore possible to access your email from different devices. To set up your phone for IMAP email, you need to set up your phone for internet.
Select an alternative email configuration:
- Set up your phone for Telstra Mail
- Set up your phone for POP3 email
- Set up your phone for Exchange email

Press Settings.
Press Mail.
Press Accounts.
Press Add Account.
Press Other.
Press Add Mail Account.
Press Name and key in the required sender name.
Press Email and key in your email address.
Press Password and key in the password for your email account.
Press Description and key in the required name.
Press Next.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.
Press IMAP.
Press Host Name and key in the name of your email provider's incoming server.

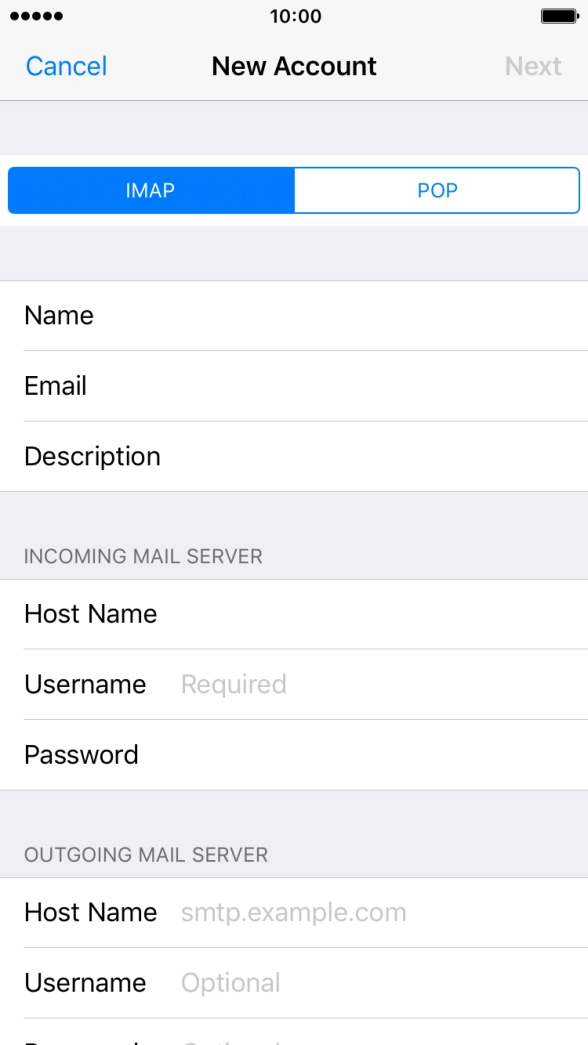

Press Username and key in the username for your email account.
Press Host Name and key in the name of your email provider's outgoing server.
Press Username and key in the username for your email account.

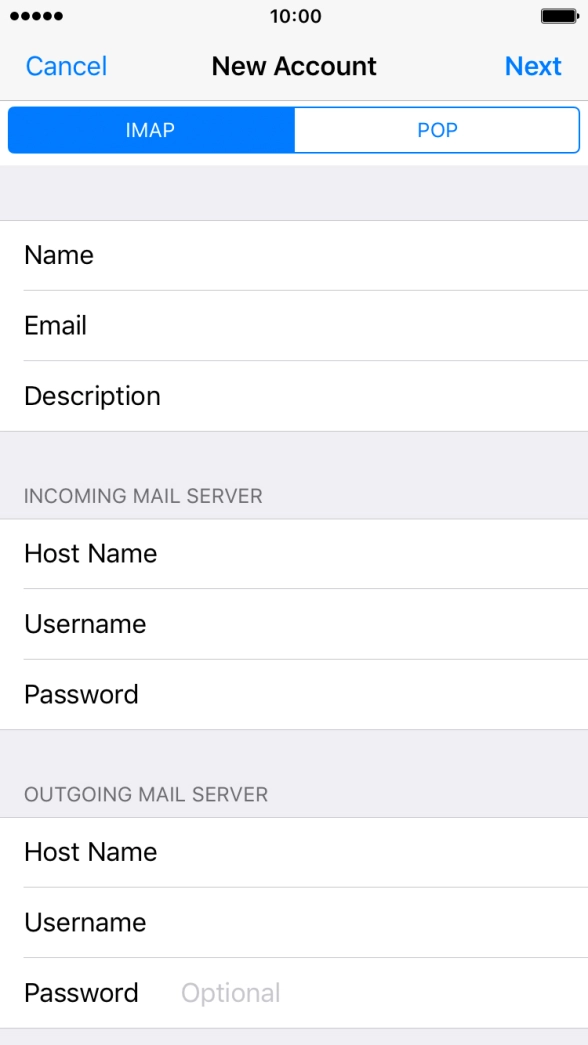

Press Password and key in the password for your email account.
Press Next.

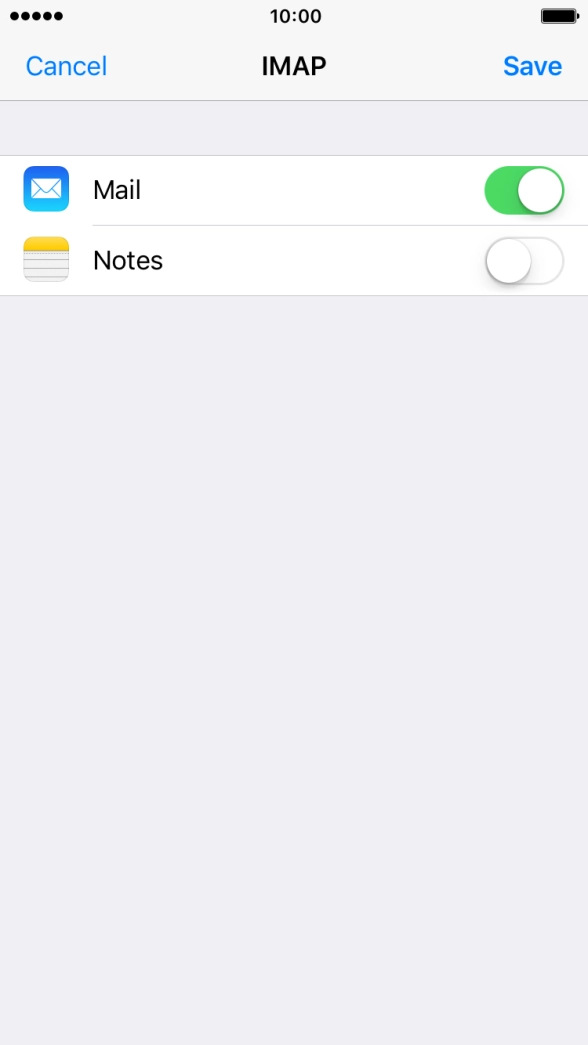

Press Save.
Press the name of the email account you've just set up.

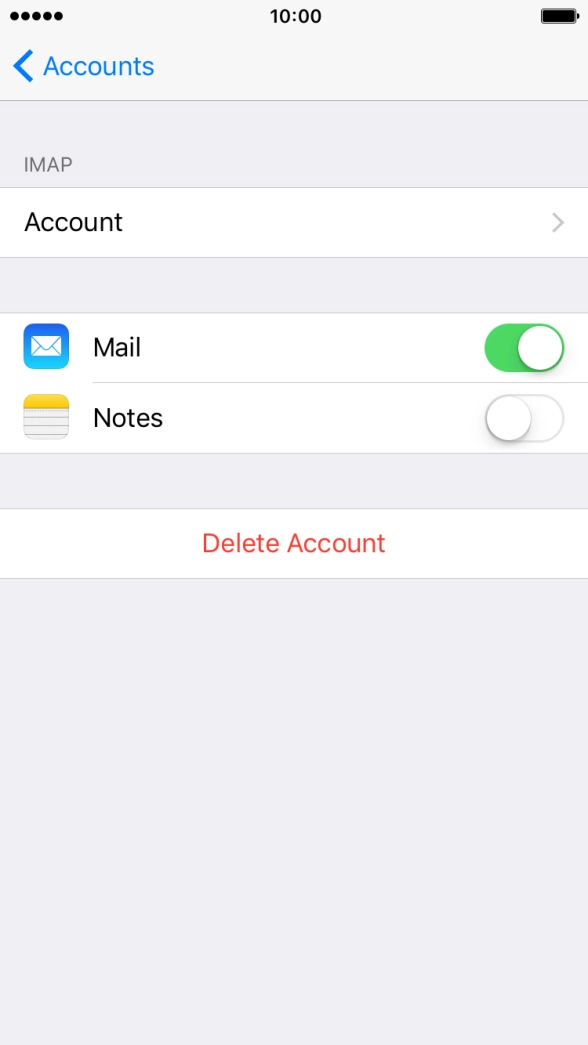

Press Account.

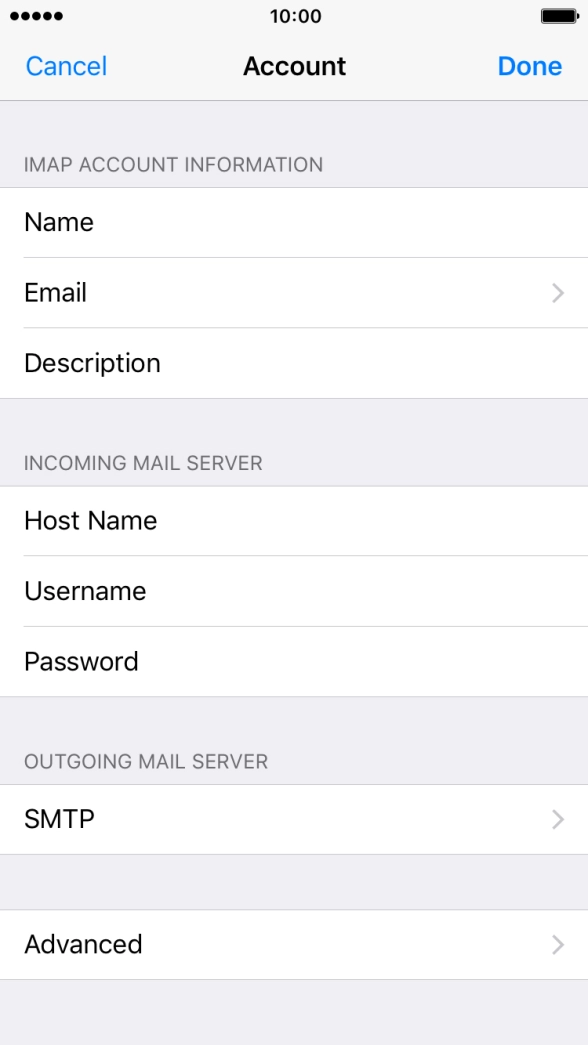

Press SMTP.

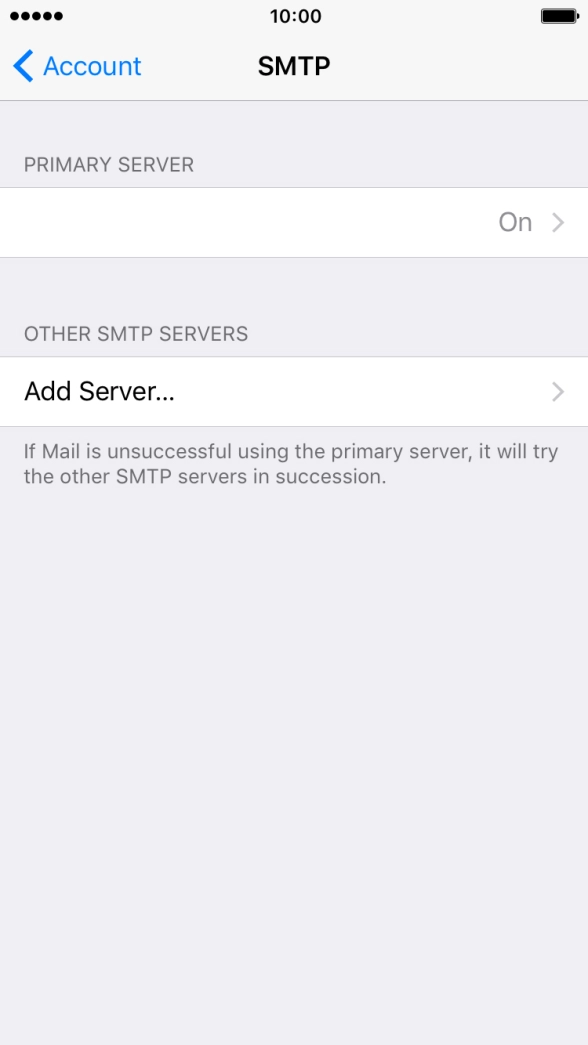

Press the field below

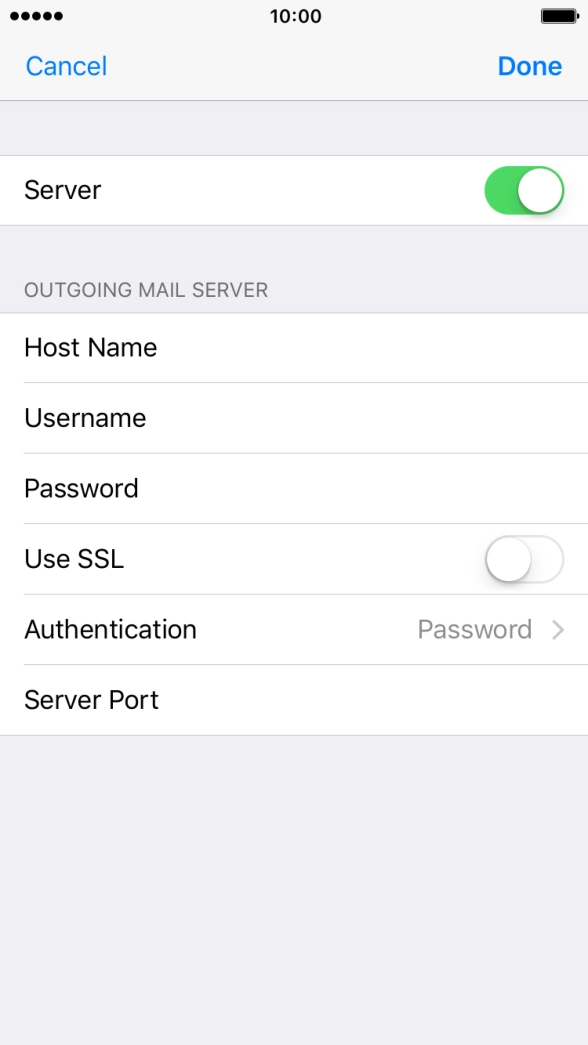

Press the indicator next to

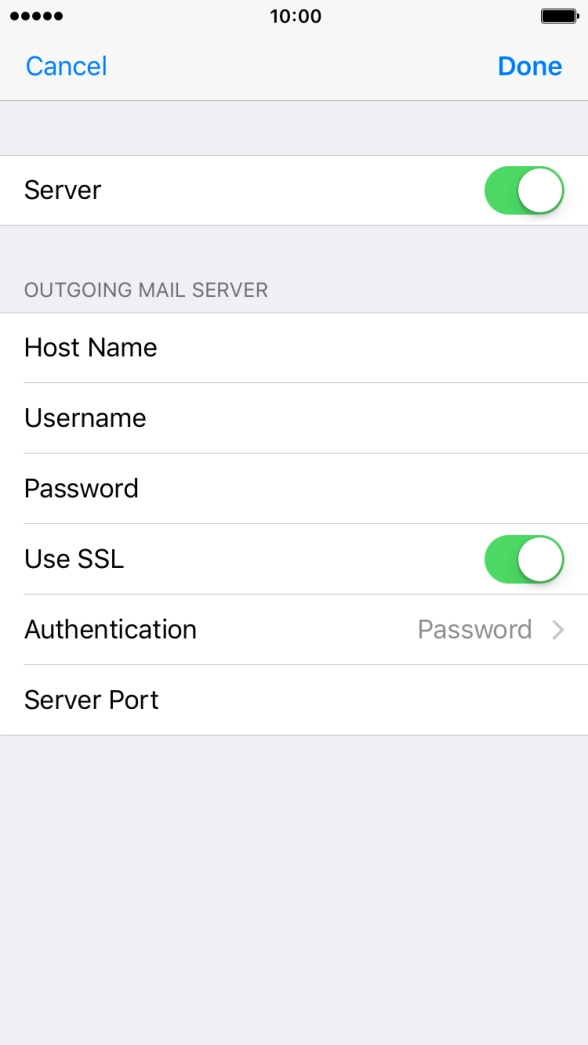

Press Authentication.
Press Password.
Press arrow left.
Press Server Port and key in 25.
25
Press Done.
Press arrow left.
Press Advanced.

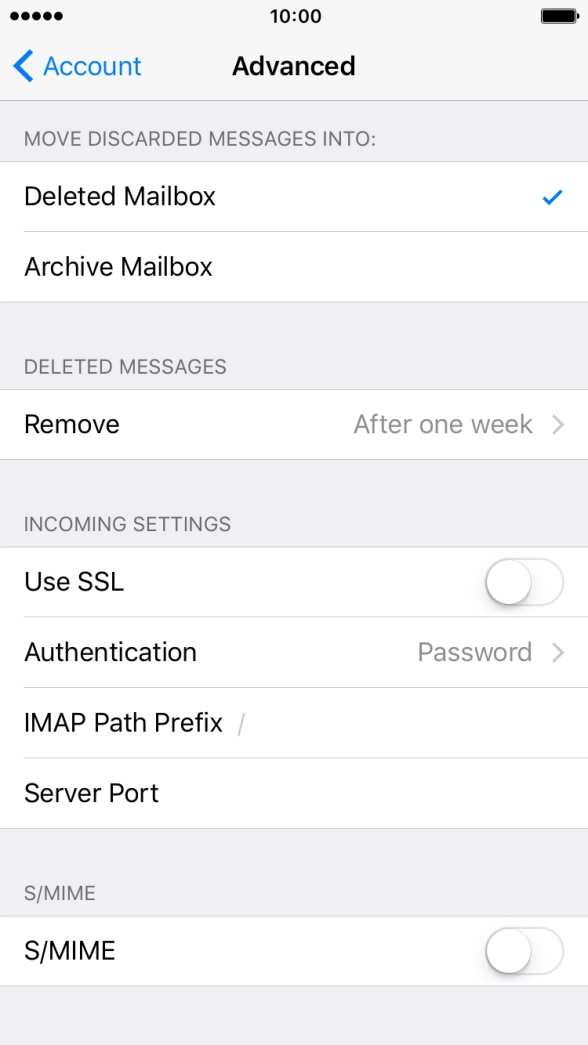

Press the indicator next to

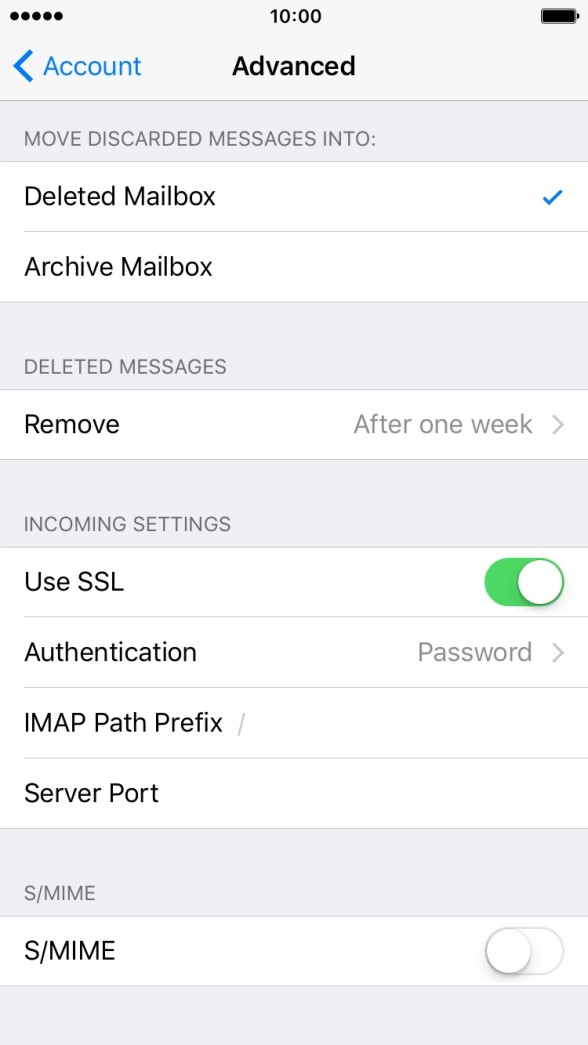

Press Authentication.
Press Password.
Press arrow left.
Press Server Port and key in 143.
143
Press arrow left.
Press Done.
Press Fetch New Data.
Press the indicator next to
If you turn off the function, press the required setting.
Press the required email account and follow the instructions on the screen to select settings for the specific account.
Press the Home key to return to the home screen.
  • 1
    Find "Mail"
    • Press Settings.
    • Press Mail.
  • 2
    Create new email account
    • Press Accounts.
    • Press Add Account.
    • Press Other.
      If the name of your email provider is on the list, press this instead.
    • Press Add Mail Account.
  • 3
    Key in sender name
    • Press Name and key in the required sender name.
  • 4
    Enter email address
    • Press Email and key in your email address.
  • 5
    Enter password
    • Press Password and key in the password for your email account.
  • 6
    Enter email account name
    • Press Description and key in the required name.
    • Press Next.
    • If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.
  • 7
    Select server type
    • Press IMAP.
  • 8
    Enter incoming server
    • Press Host Name and key in the name of your email provider's incoming server.
  • 9
    Enter username
    • Press Username and key in the username for your email account.
  • 10
    Enter outgoing server
    • Press Host Name and key in the name of your email provider's outgoing server.
  • 11
    Enter username
    • Press Username and key in the username for your email account.
  • 12
    Enter password
    • Press Password and key in the password for your email account.
    • Press Next.
    • Press Save.
  • 13
    Select email account
    • Press the name of the email account you've just set up.
    • Press Account.
  • 14
    Turn on encryption of outgoing email
    • Press SMTP.
    • Press the field below "PRIMARY SERVER".
    • Press the indicator next to "Use SSL" to turn on the function.
  • 15
    Turn on password encryption
    • Press Authentication.
    • Press Password.
    • Press arrow left.
  • 16
    Enter outgoing port
    • Press Server Port and key in 25.
    • Press Done.
    • Press arrow left.
  • 17
    Turn on encryption of incoming email
    • Press Advanced.
    • Press the indicator next to "Use SSL" to turn on the function.
  • 18
    Turn on password encryption
    • Press Authentication.
    • Press Password.
    • Press arrow left.
  • 19
    Enter incoming port
    • Press Server Port and key in 143.
    • Press arrow left.
    • Press Done.
  • 20
    Select setting for retrieval of new email
    • Press Fetch New Data.
    • Press the indicator next to "Push" to turn the function on or off.
    • If you turn off the function, press the required setting.
    • Press the required email account and follow the instructions on the screen to select settings for the specific account.
  • 21
    Return to the home screen
    • Press the Home key to return to the home screen.
