Nokia 7.2

To send and receive picture messages, your phone needs to be correctly set up for picture messaging.

Solution: Set up your phone for picture messaging

Previous step

Telstra MMS

telstra.mms

http://mmsc.telstra.com:8002

10.1.1.180

80

505

01

mms

Next step

Step 1 of 28

Step 1 of 28

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

1. Slide two fingers downwards starting from the top of the screen.
2. Press the settings icon.
3. Press Network & Internet.
4. Press Mobile network.
5. Press Advanced.

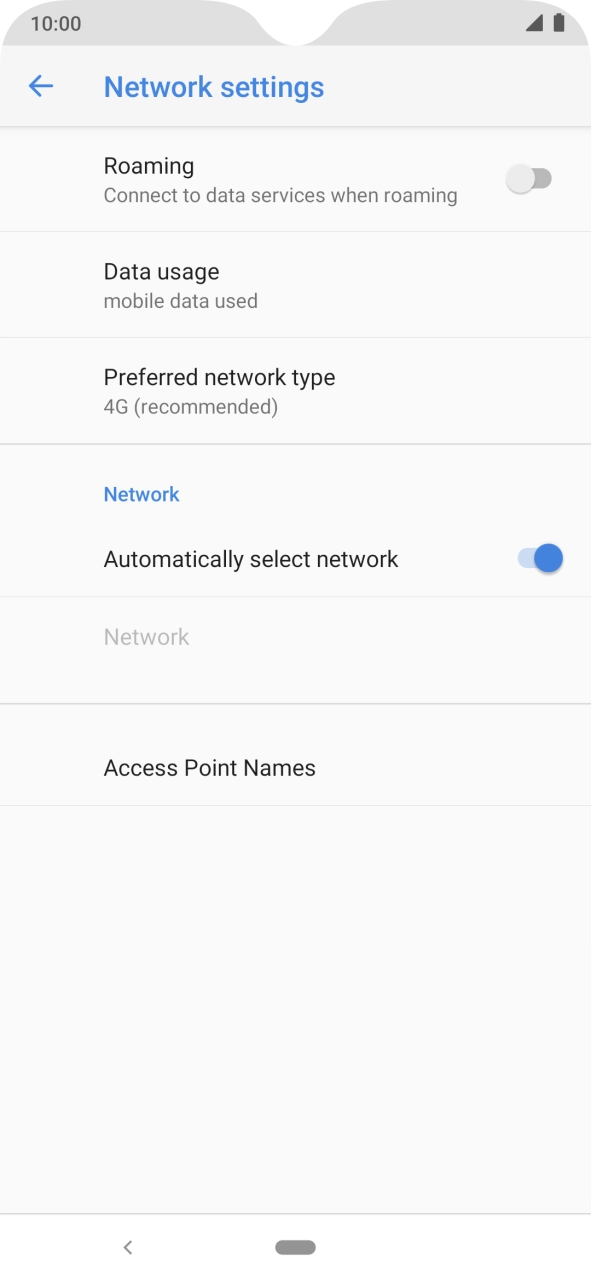

6. Press Access Point Names.

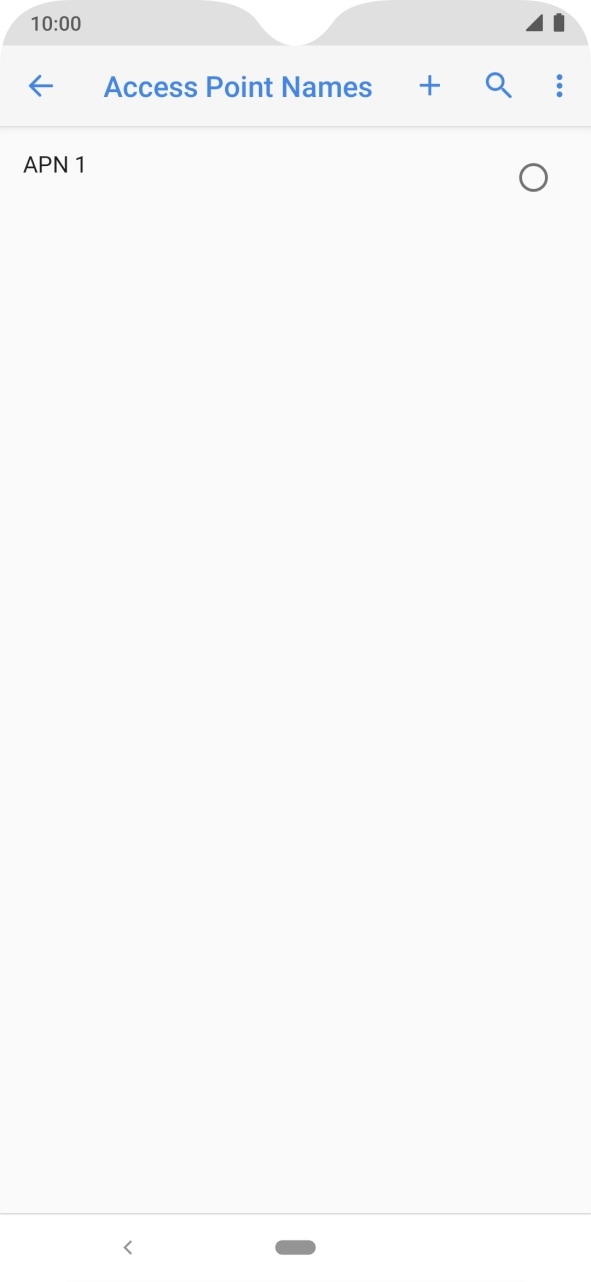

7. Press the new data connection icon.

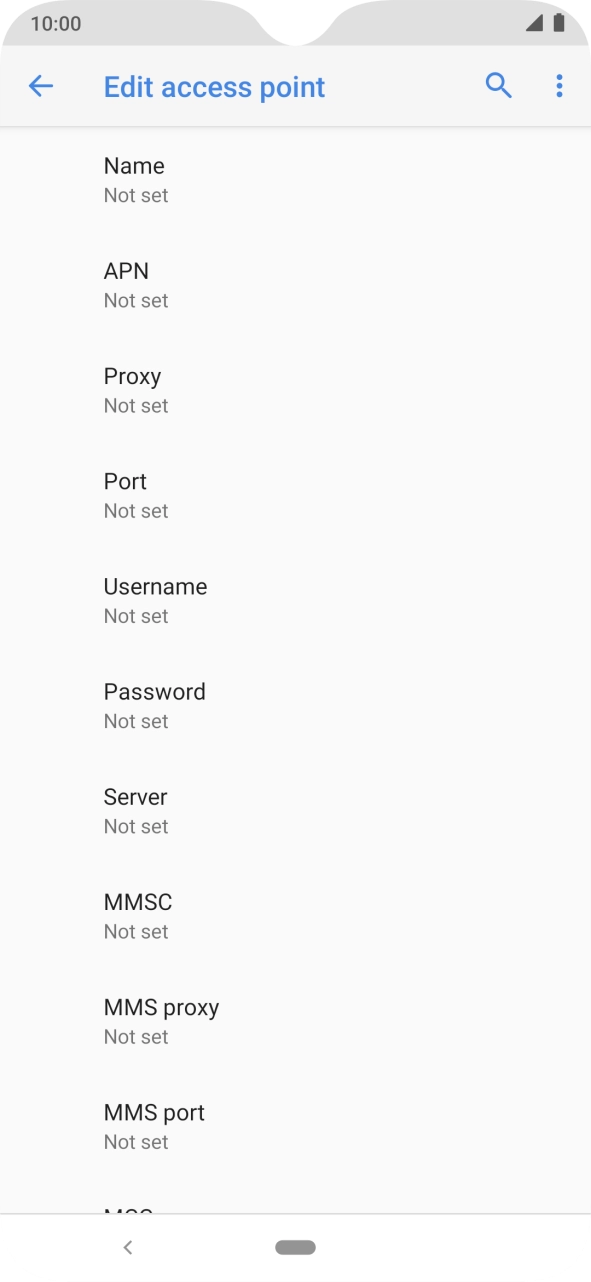

8. Press Name.
9. Key in Telstra MMS and press OK.
10. Press APN.
11. Key in telstra.mms and press OK.
12. Press MMSC.

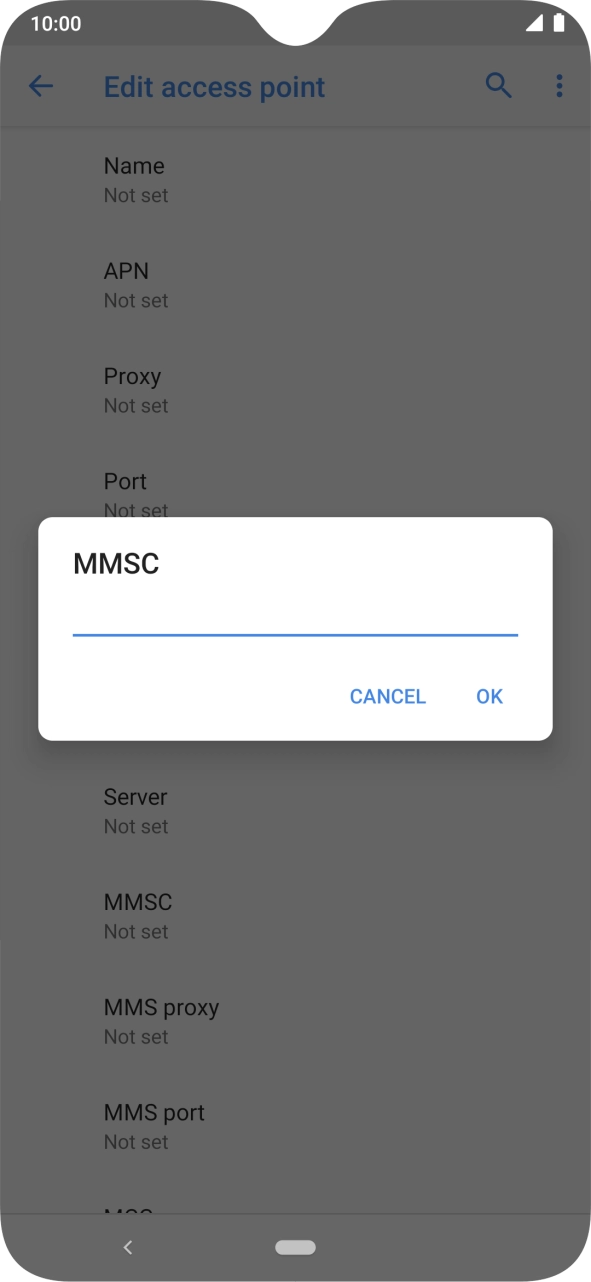

13. Key in http://mmsc.telstra.com:8002 and press OK.
14. Press MMS proxy.

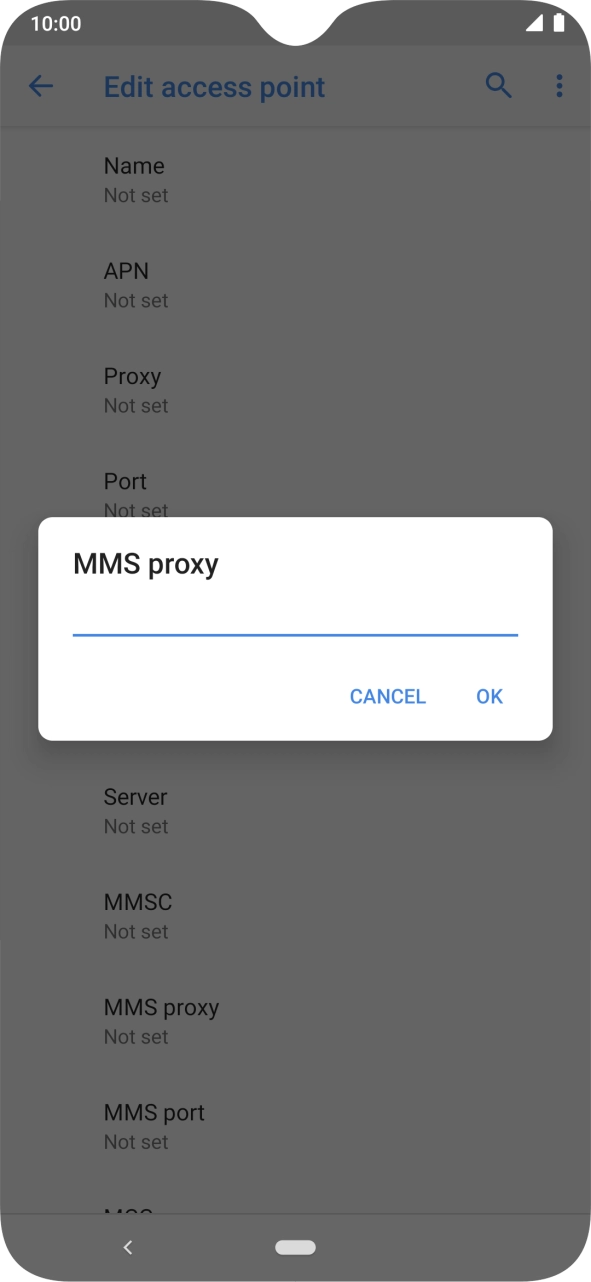

15. Key in 10.1.1.180 and press OK.
16. Press MMS port.
17. Key in 80 and press OK.

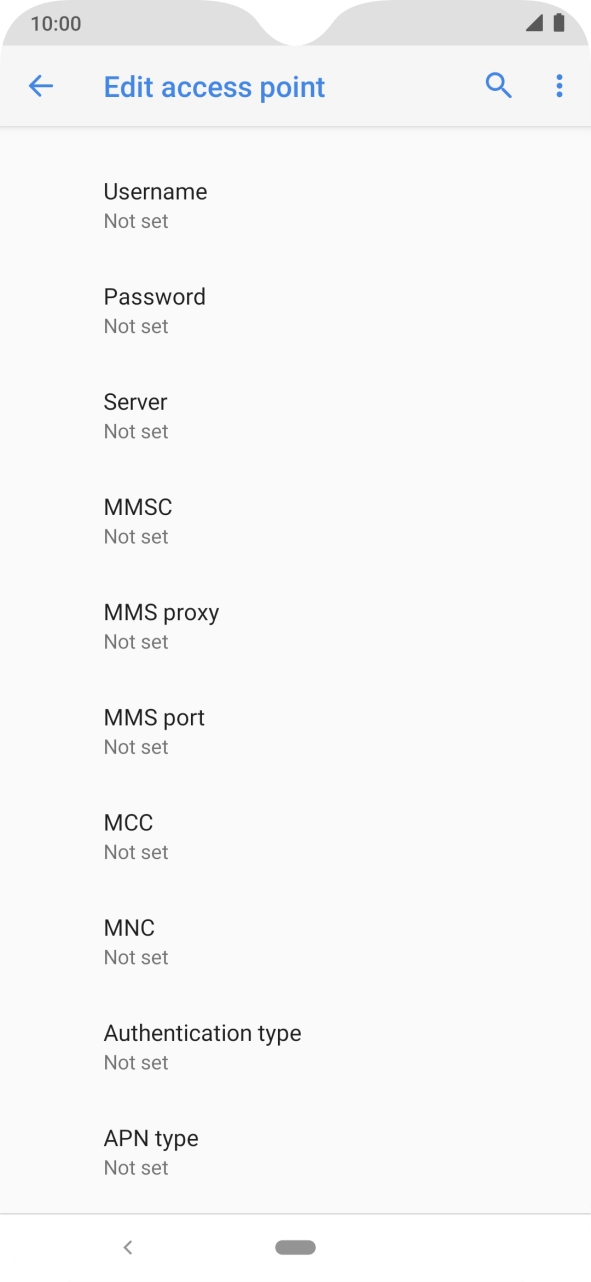

18. Press MCC.
19. Key in 505 and press OK.
20. Press MNC.

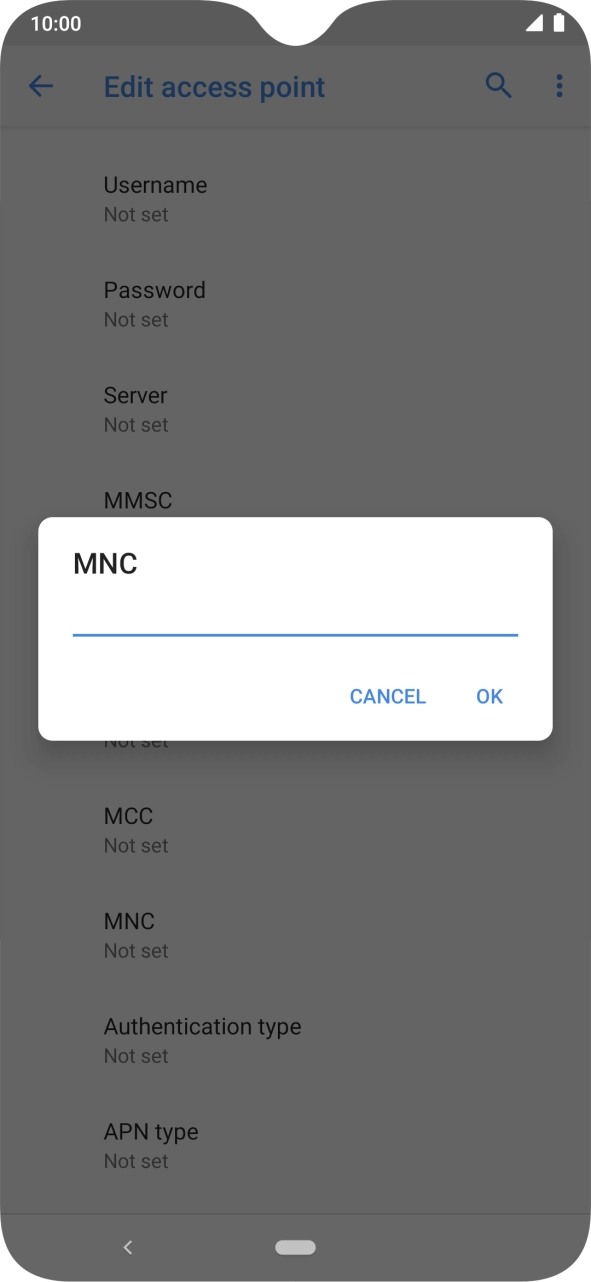

21. Key in 01 and press OK.
22. Press Authentication type.

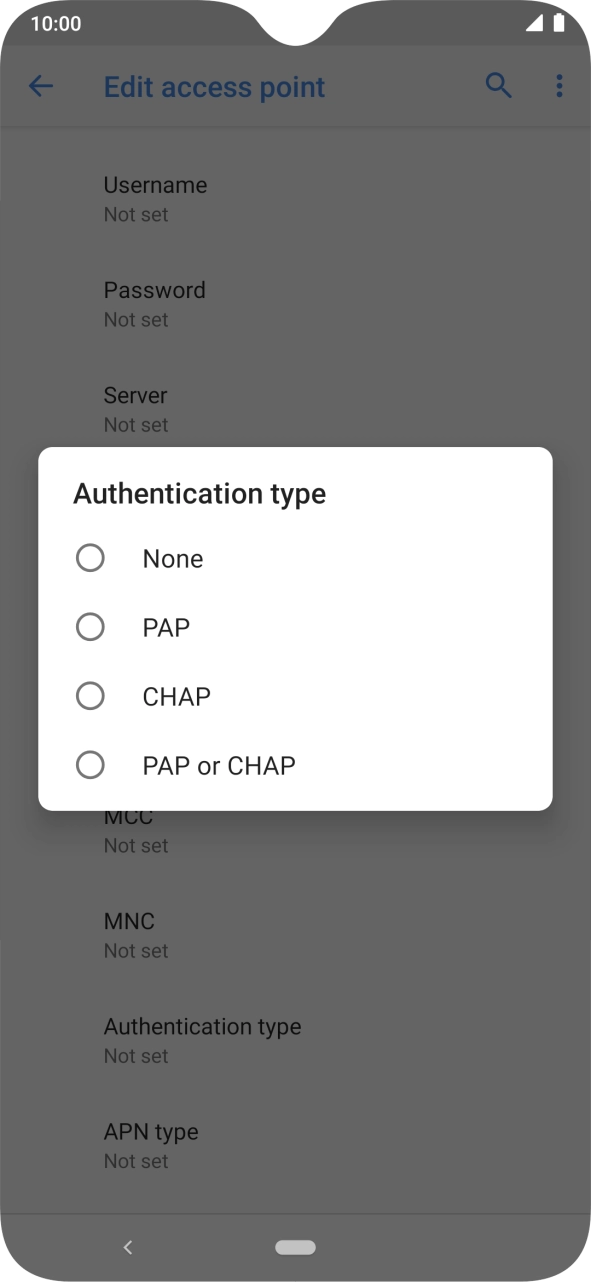

23. Press None.
24. Press APN type.

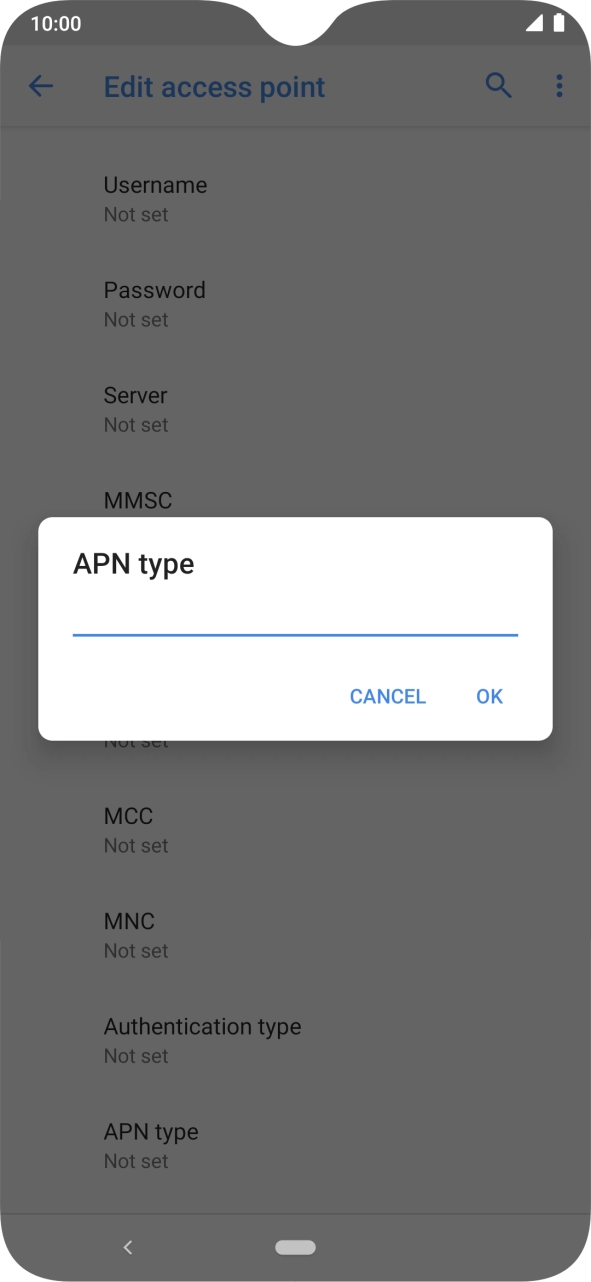

25. Key in mms and press OK.
26. Press the menu icon.

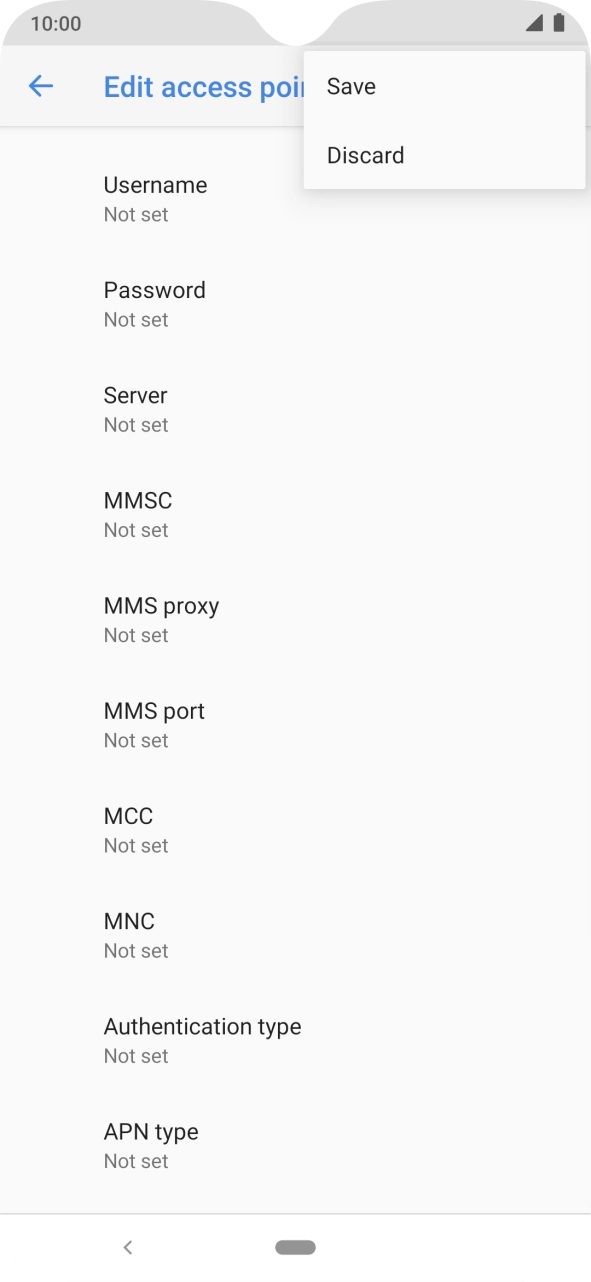

27. Press Save.

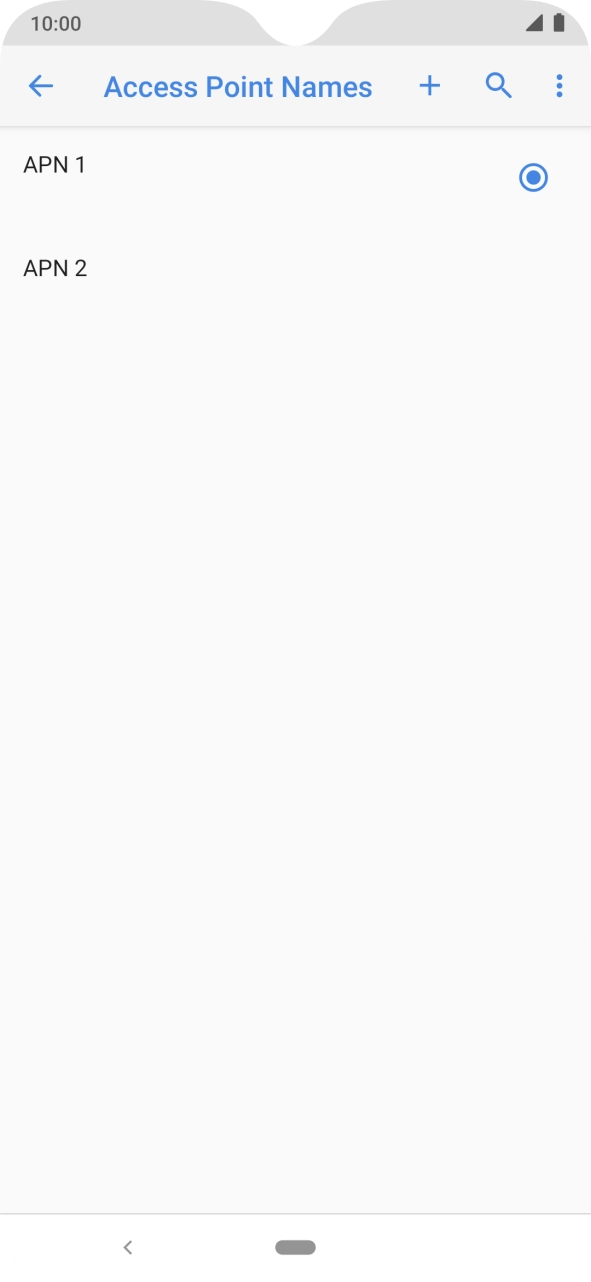

28. Press the Home key to return to the home screen.

To send a picture message, it needs to be written and sent correctly.

Solution: Write and send picture messages

Previous step

Next step

Step 1 of 10

Step 1 of 10

1. Find "Start chat"

Press the message icon.

1. Press the message icon.
2. Press Start chat.
3. Press the field next to "To" and key in the first letters of the recipient's name.
4. Press the required contact.
5. Press the text input field and write the text for your picture message.
6. Press the camera icon.

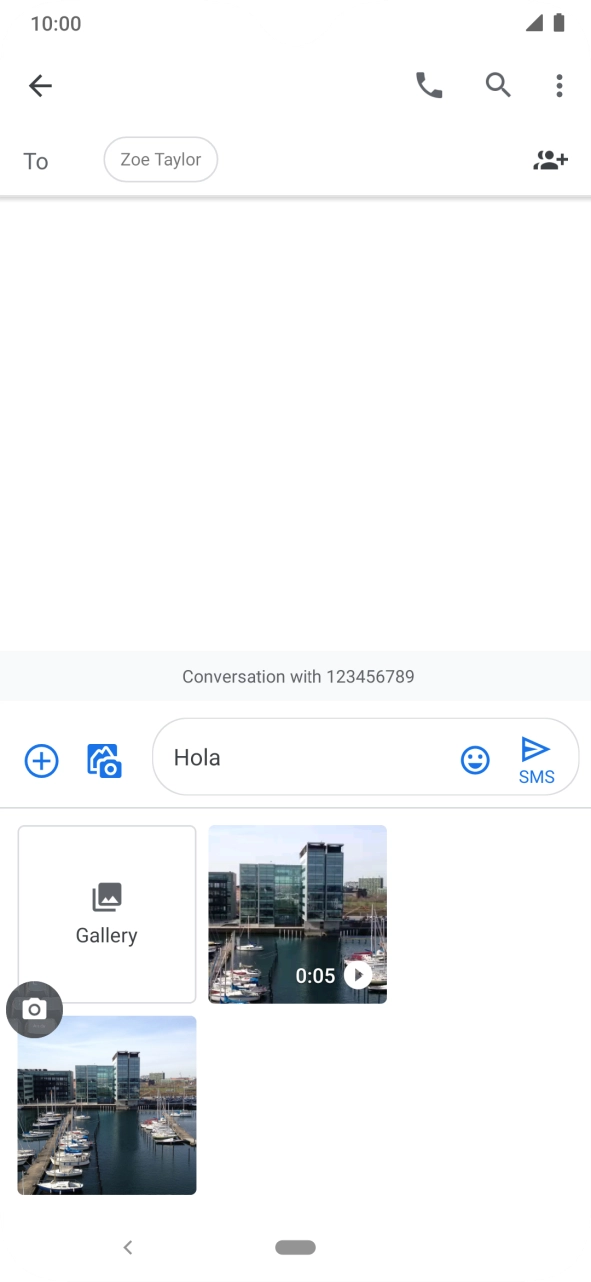

7. Press Gallery and go to the required folder.

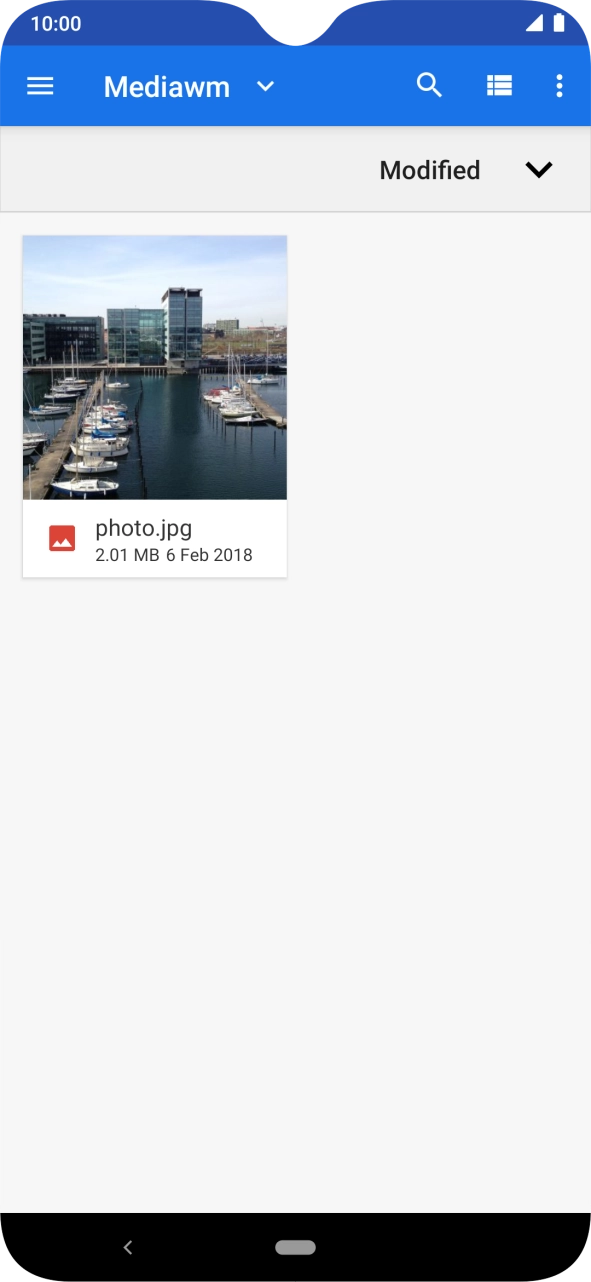

8. Press the required picture.

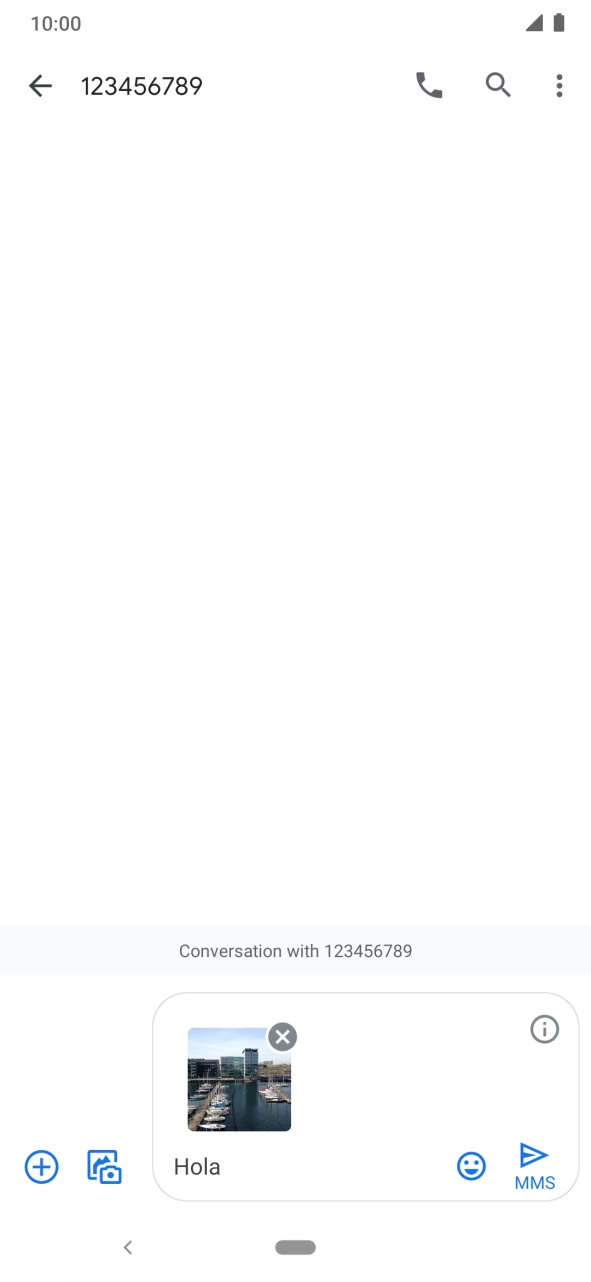

9. Press the send icon when you've finished your picture message.
10. Press the Home key to return to the home screen.

To send and receive picture messages, mobile data needs to be turned on.

Solution: Turn mobile data on or off

Previous step

Next step

Step 1 of 3

Step 1 of 3

1. Turn mobile data on or off

Slide two fingers downwards starting from the top of the screen.

1. Slide two fingers downwards starting from the top of the screen.
2. Press Mobile data to turn the function on or off.
3. Press the Home key to return to the home screen.

To send and receive picture messages when abroad, data roaming needs to be turned on.

Solution: Turn data roaming on or off

Previous step

Next step

Step 1 of 7

Step 1 of 7

1. Find "Mobile network"

Slide two fingers downwards starting from the top of the screen.

1. Slide two fingers downwards starting from the top of the screen.
2. Press the settings icon.
3. Press Network & Internet.
4. Press Mobile network.
5. Press the indicator next to "Roaming" to turn the function on or off.
6. If you turn on the function, press OK.
7. Press the Home key to return to the home screen.

If you're having problems sending picture messages to a specific number, the error might be at the receiving end.

Solution: Try sending a picture message to another number.
