Set up your phone for internet

The internet connection is shared by many functions on your phone such as internet browsing, receiving email and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

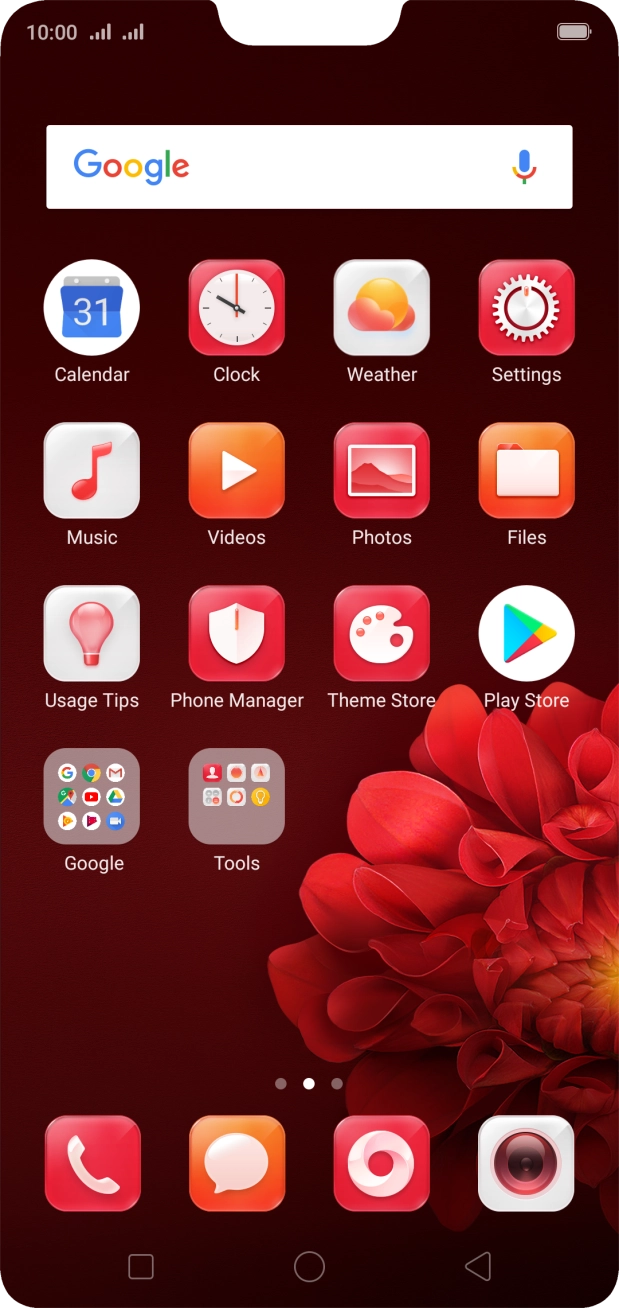

Press Settings.

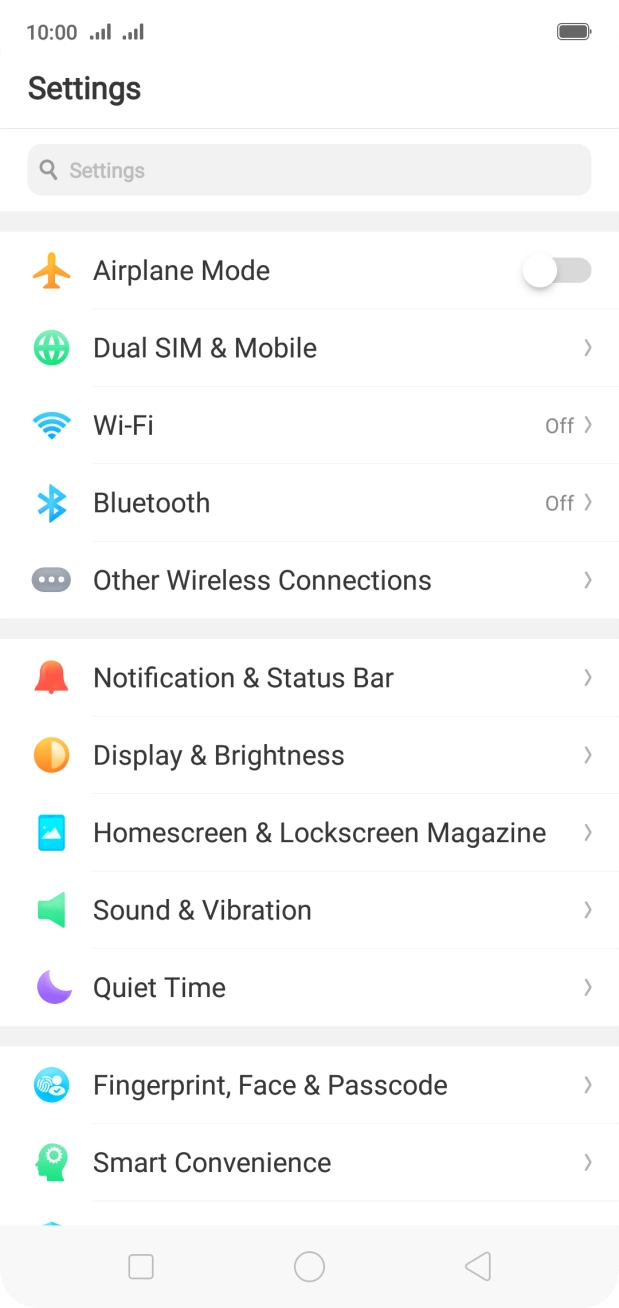

Press Dual SIM & Mobile.

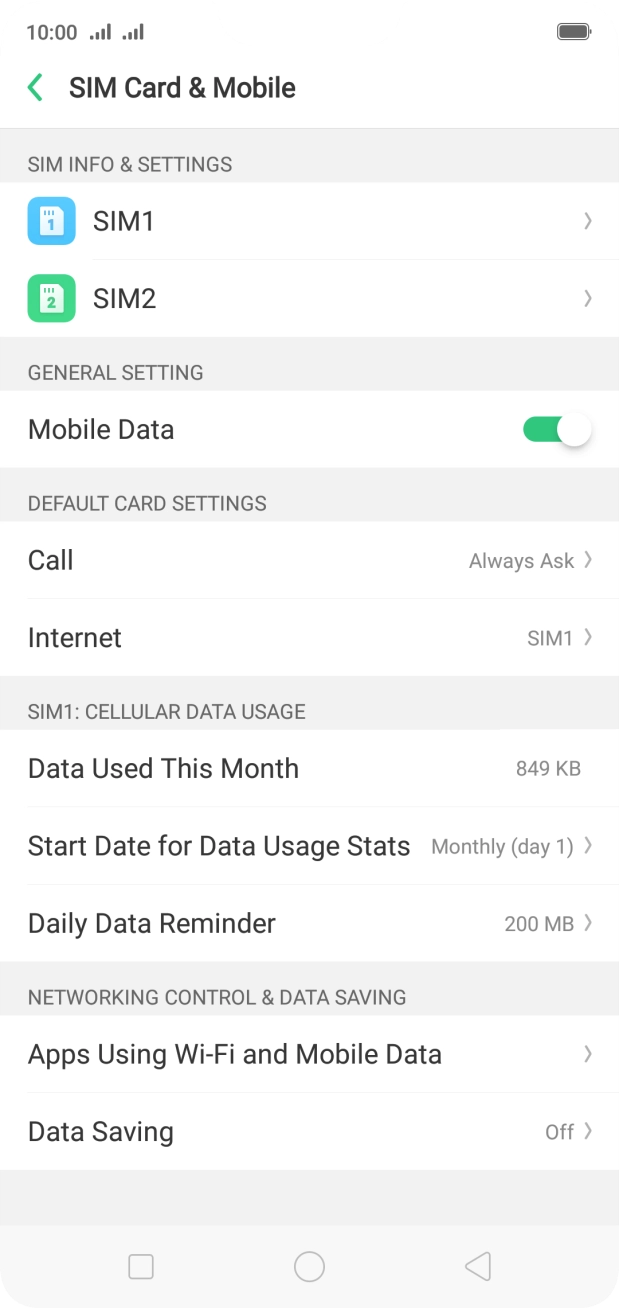

Press the required SIM.

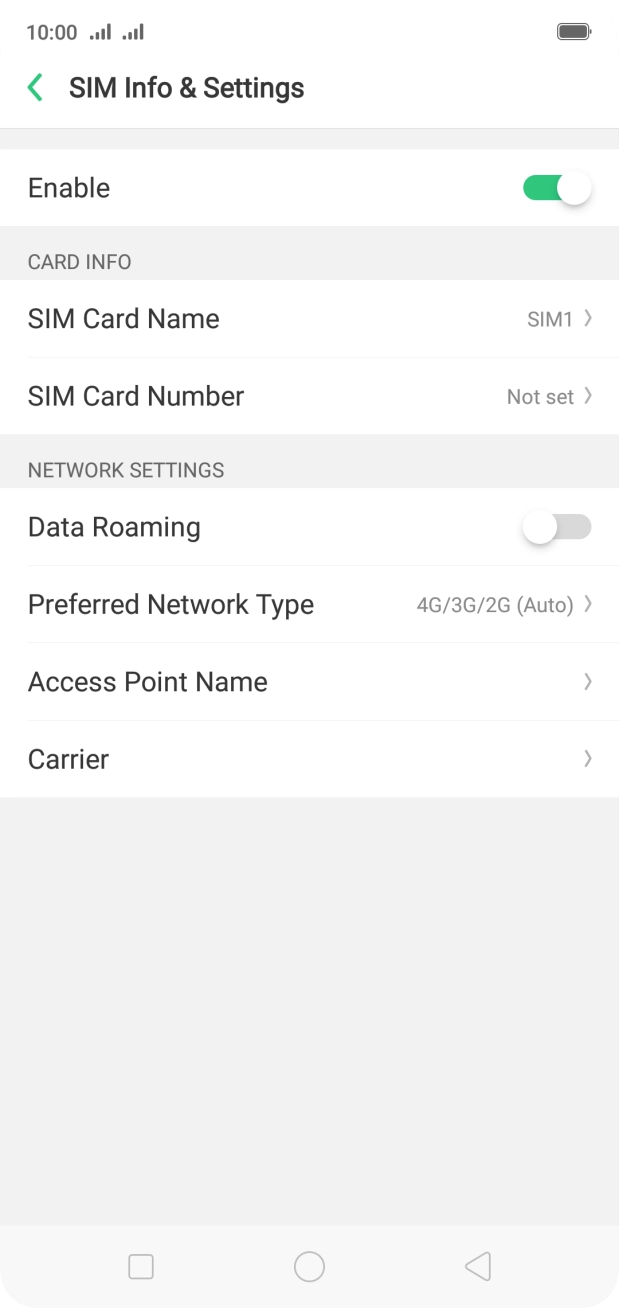

Press Access Point Name.

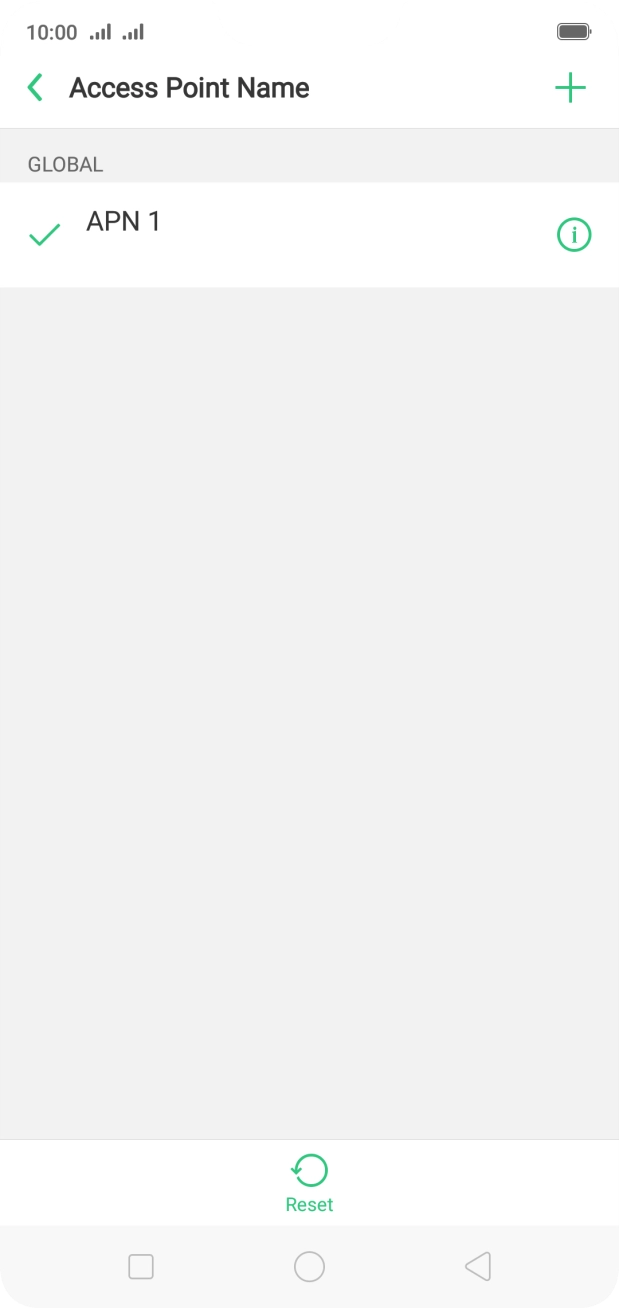

Press the new data connection icon.

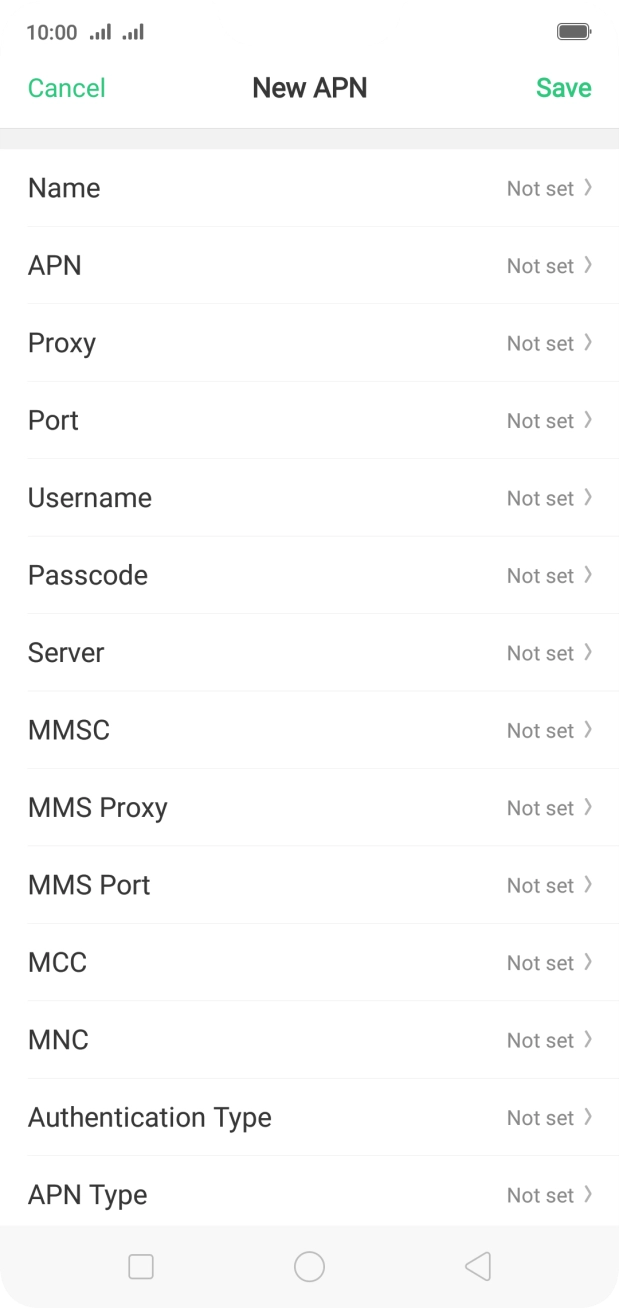

Press Name.

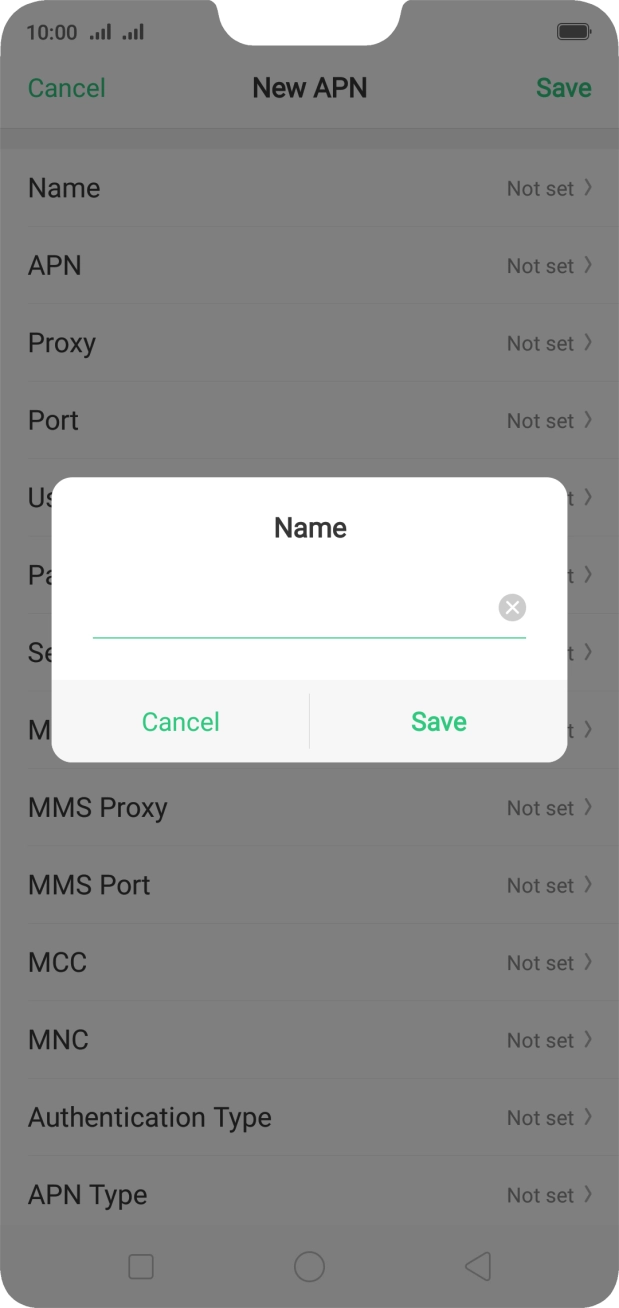

Key in Telstra Internet and press Save.
Telstra Internet
Press APN.

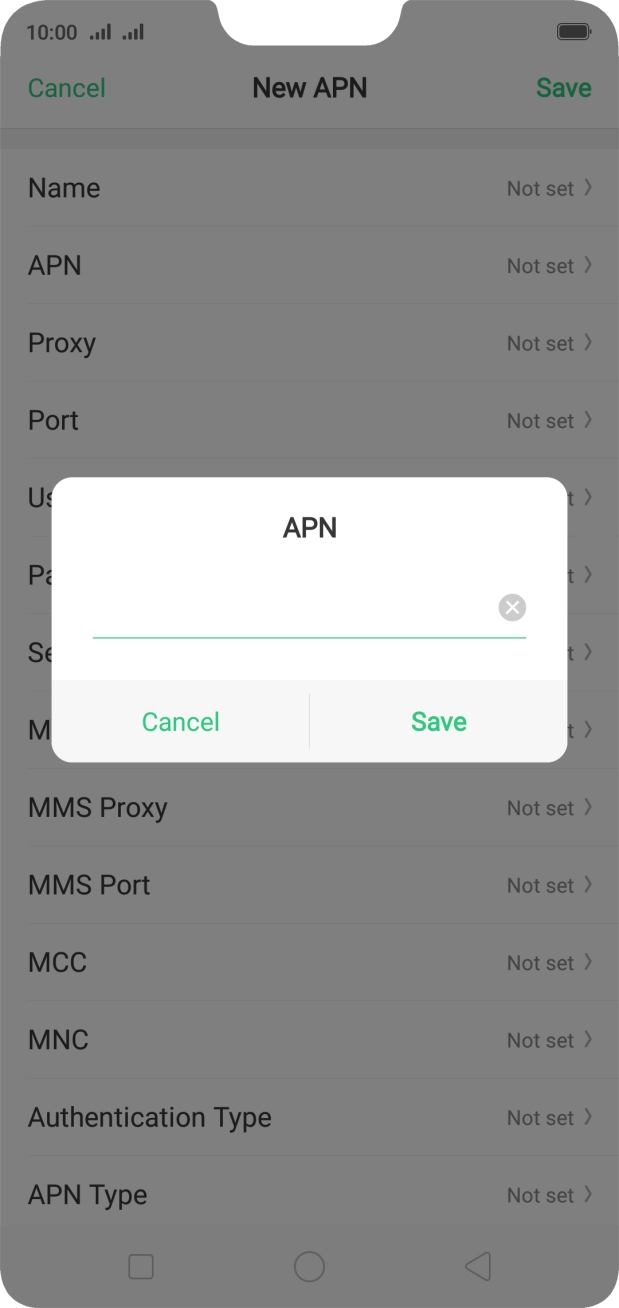

Key in telstra.wap and press Save.
telstra.wap
Press MCC.
Key in 505 and press Save.
505
Press MNC.
Key in 01 and press Save.
01
Press Authentication Type.

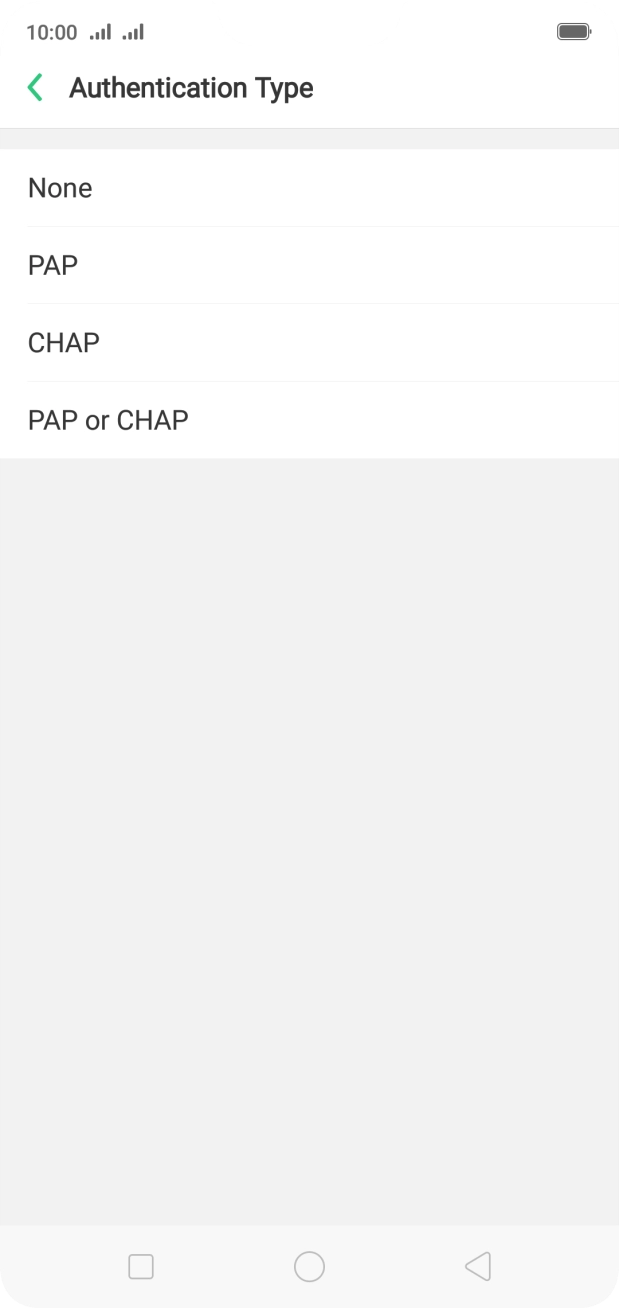

Press None.
Press APN Type.
Key in default and press Save.
default
Press Save.
Press the required data connection to activate it.

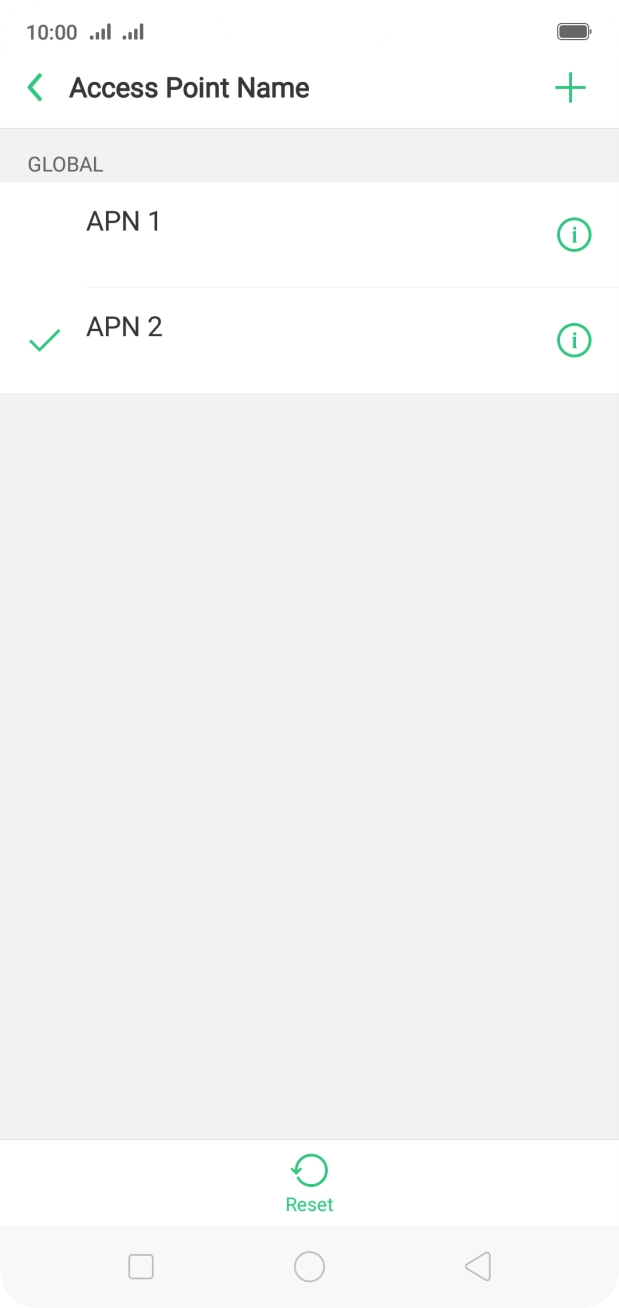

Press the Home key to return to the home screen.
  • 1
    Find "Access Point Name"
    • Press Settings.
    • Press Dual SIM & Mobile.
    • Press the required SIM.
    • Press Access Point Name.
  • 2
    Create new data connection
    • Press the new data connection icon.
  • 3
    Enter a name for the connection
    • Press Name.
    • Key in Telstra Internet and press Save.
  • 4
    Enter APN
    • Press APN.
    • Key in telstra.wap and press Save.
  • 5
    Enter country code
    • Press MCC.
    • Key in 505 and press Save.
  • 6
    Enter network code
    • Press MNC.
    • Key in 01 and press Save.
  • 7
    Select authentication type
    • Press Authentication Type.
    • Press None.
  • 8
    Enter APN type
    • Press APN Type.
    • Key in default and press Save.
  • 9
    Save data connection
    • Press Save.
    • Press the required data connection to activate it.
  • 10
    Return to the home screen
    • Press the Home key to return to the home screen.
