Set up your phone for internet

The internet connection is shared by many functions on your phone such as internet browsing, receiving email and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Network & Internet.
Press Mobile network.
Press Access point names.

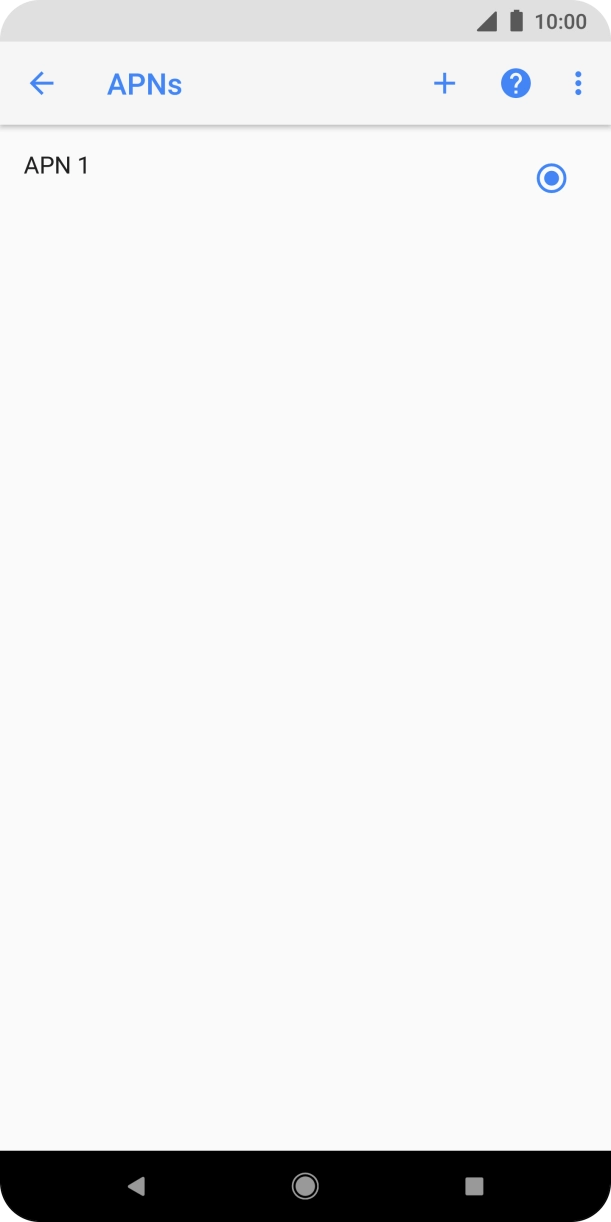

Press the new data connection icon.

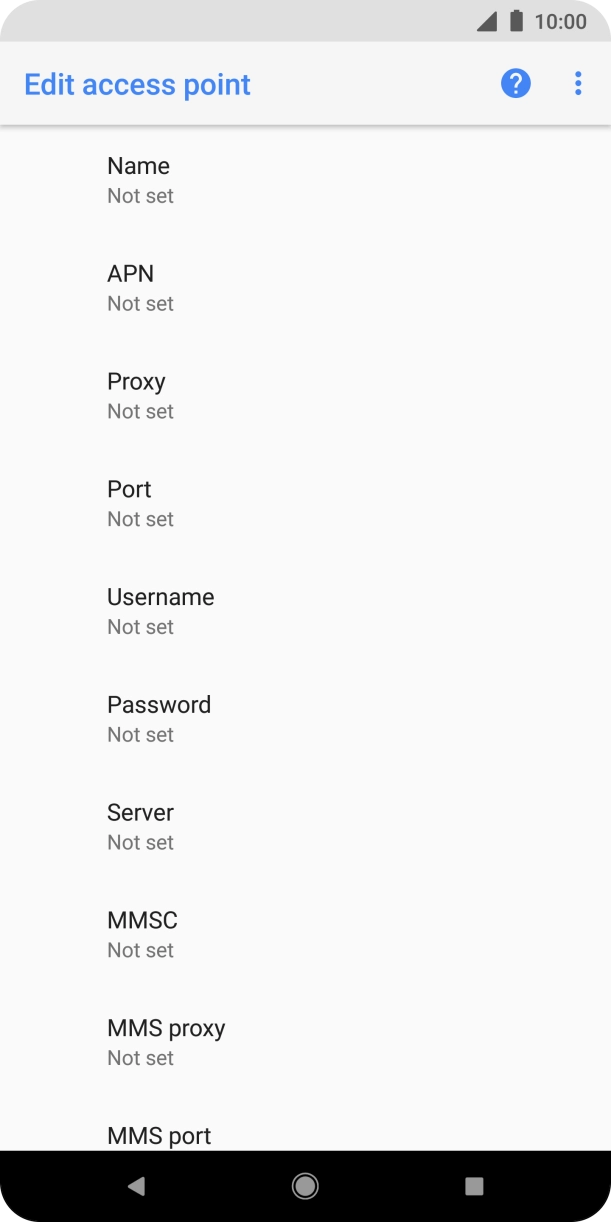

Press Name.

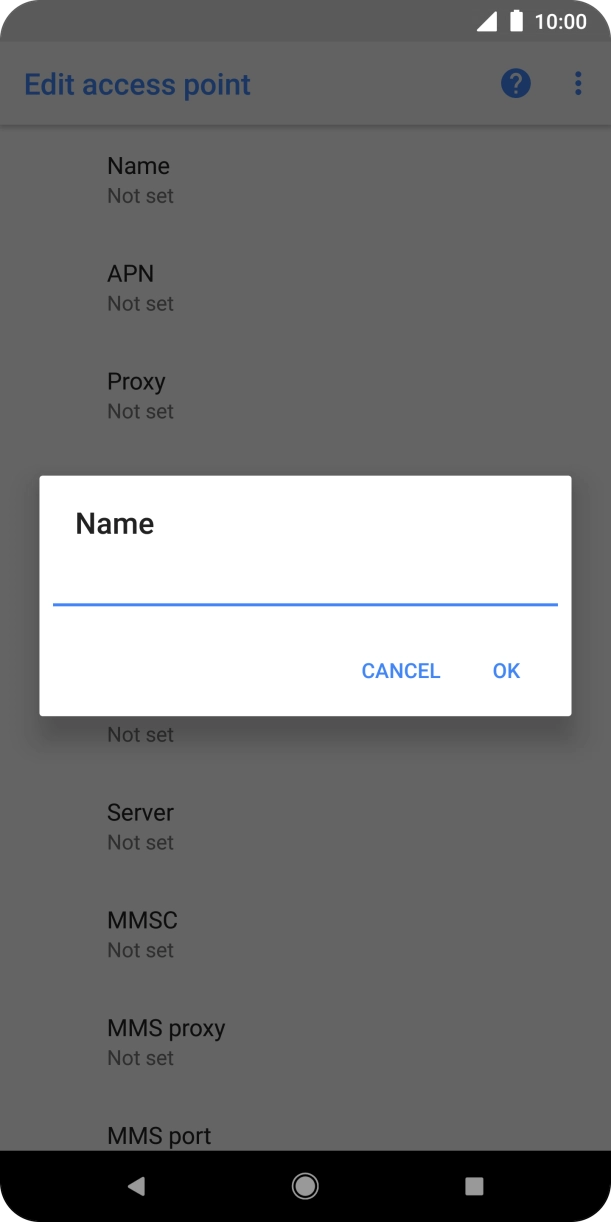

Key in Telstra Internet and press OK.
Telstra Internet
Press APN.
Key in telstra.wap and press OK.
telstra.wap

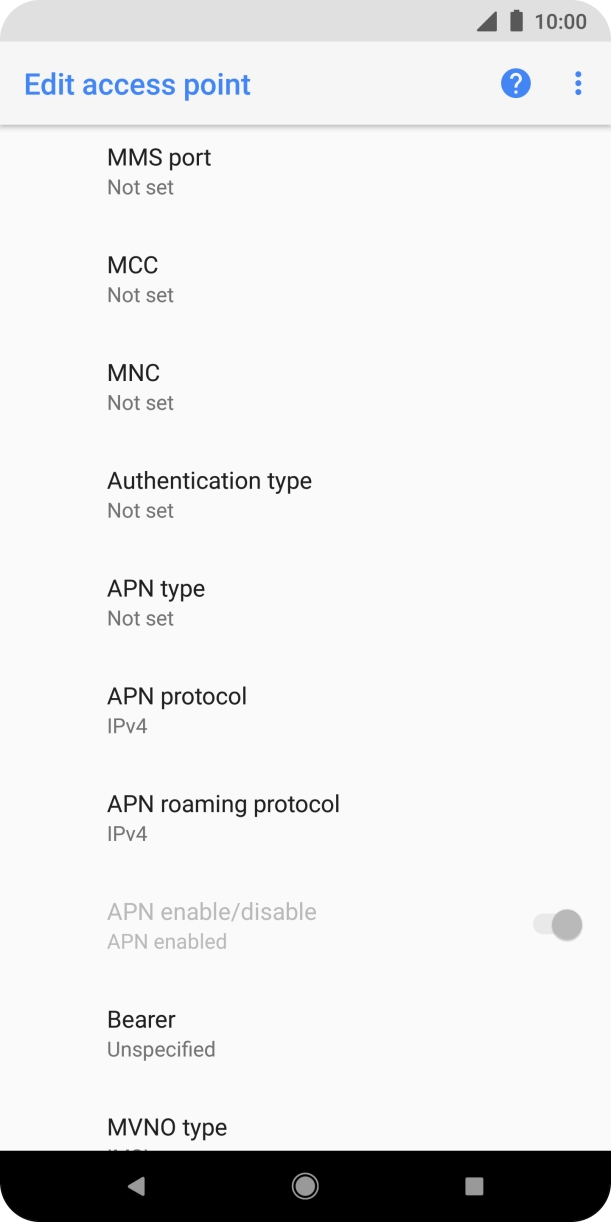

Press MCC.

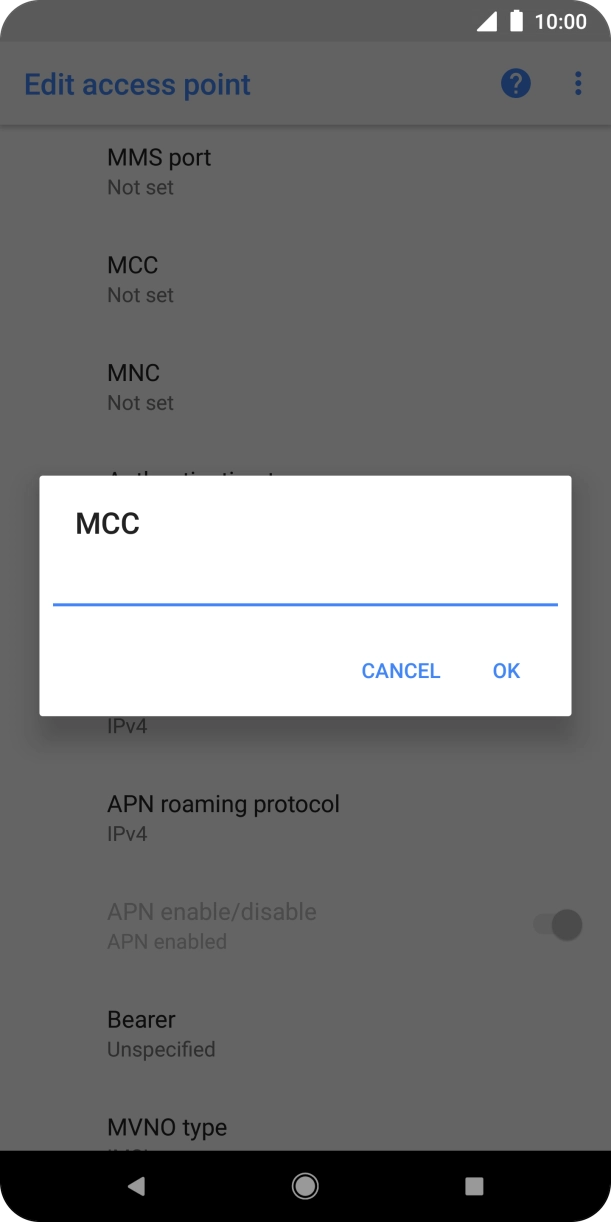

Key in 505 and press OK.
505
Press MNC.

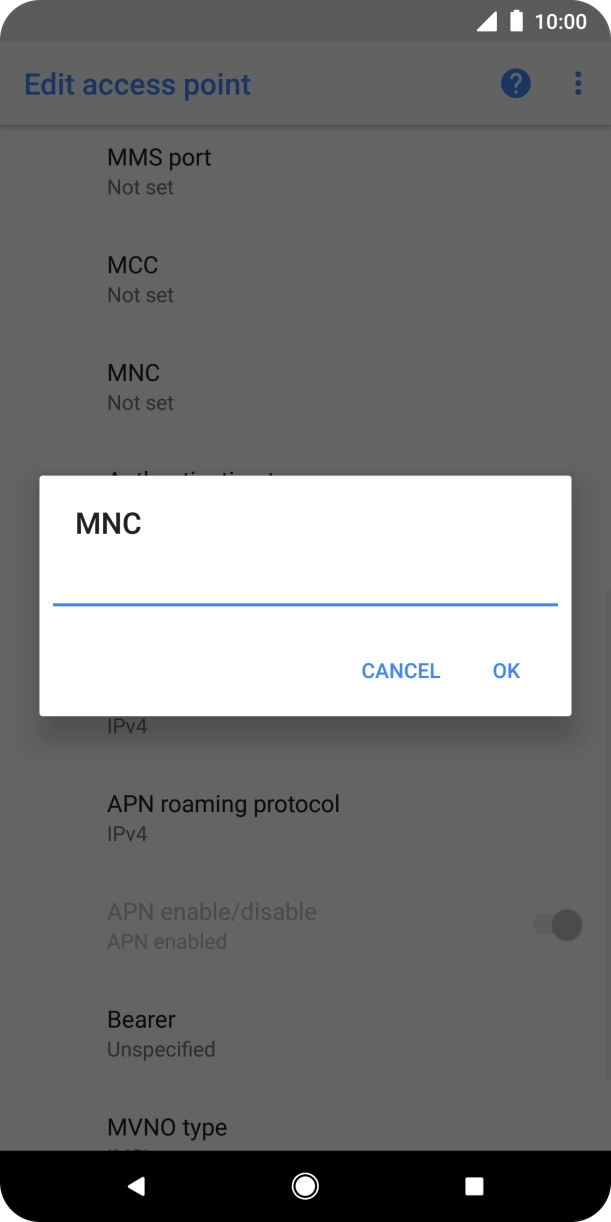

Key in 01 and press OK.
01
Press Authentication type.
Press None.
Press APN type.

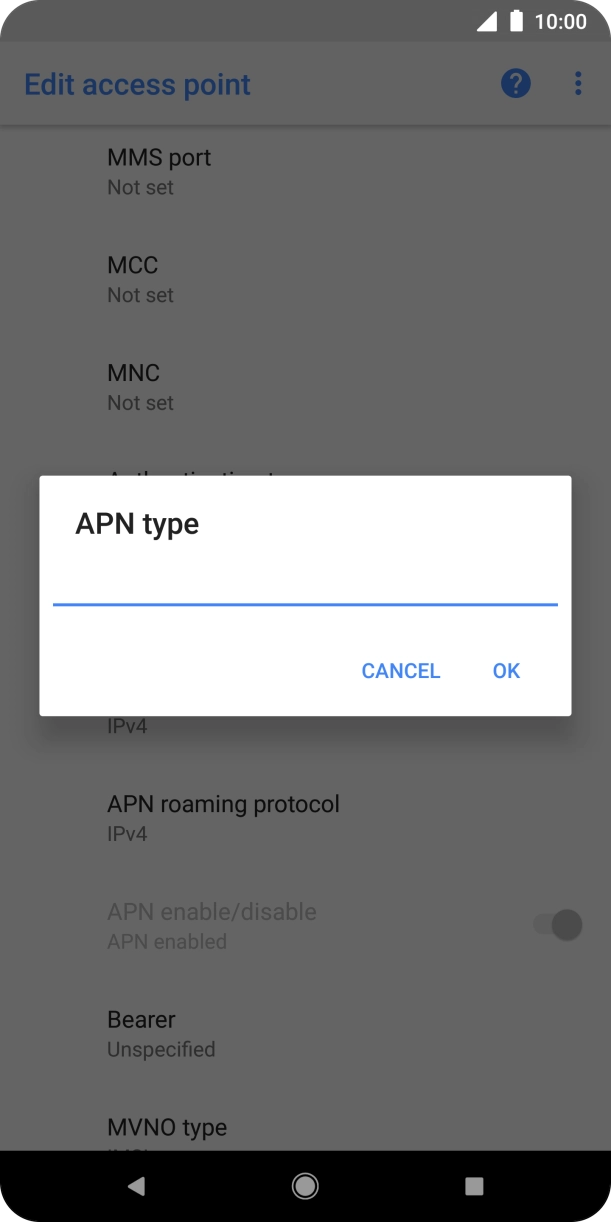

Key in default and press OK.
default
Press the menu icon.

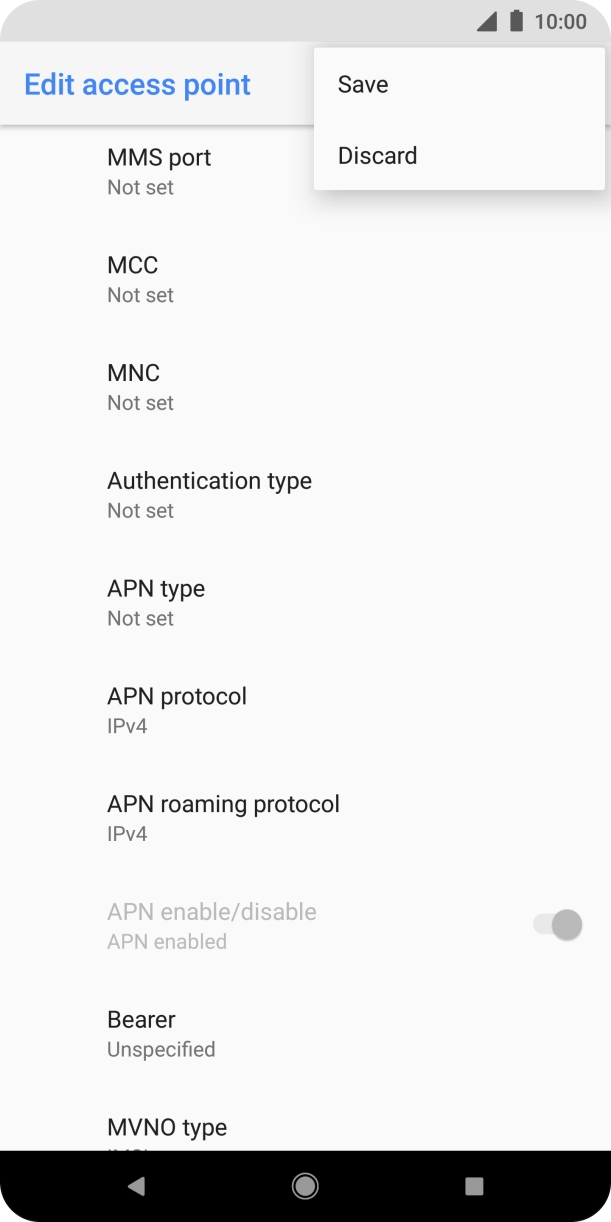

Press Save.

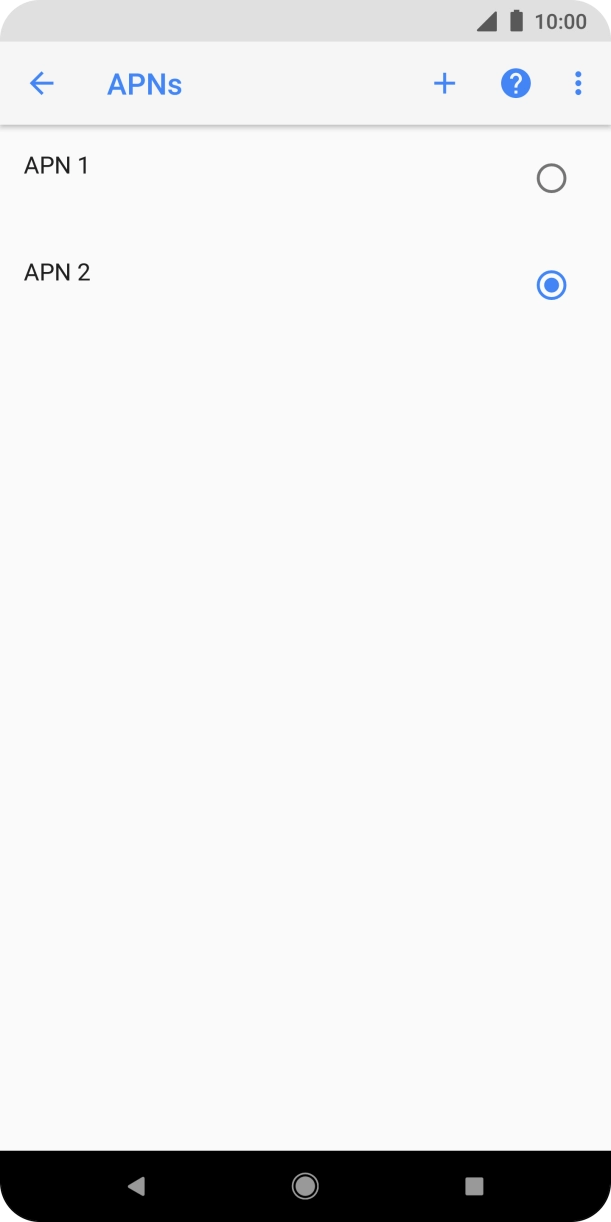

Press the field next to the data connection to activate it.
Press the Home key to return to the home screen.
  • 1
    Find "Access point names"
    • Slide your finger downwards starting from the top of the screen.
    • Press the settings icon.
    • Press Network & Internet.
    • Press Mobile network.
    • Press Access point names.
  • 2
    Create new data connection
    • Press the new data connection icon.
    • Press Name.
    • Key in Telstra Internet and press OK.
  • 3
    Enter APN
    • Press APN.
    • Key in telstra.wap and press OK.
  • 4
    Enter country code
    • Press MCC.
    • Key in 505 and press OK.
  • 5
    Enter network code
    • Press MNC.
    • Key in 01 and press OK.
  • 6
    Select authentication type
    • Press Authentication type.
    • Press None.
  • 7
    Select APN type
    • Press APN type.
    • Key in default and press OK.
  • 8
    Save data connection
    • Press the menu icon.
    • Press Save.
    • Press the field next to the data connection to activate it.
  • 9
    Return to the home screen
    • Press the Home key to return to the home screen.
